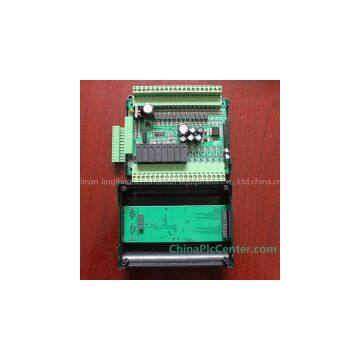

FX1N 40MT 24input 16 Output PLC Module 2 Analog Input(0-10v) 2 Analog Output(0-10v) 150KHz 4-Axis Pulse Output RS485 MODBUS

    Product Features :

1,  support maximum 4-axis pulse output ,  maximum frequency up to 150Khz.

2, two communications/downloading port , one RS485 communication port, and support Mitsubishi protocol and modbus master-slave protocol.

3, PLC supports writing , download, monitor , written during operation , clear the memory and other functions.

4 ,  support maximum 8 AB encoder counter , the default is 2 AB counters.

5 , super -capacity D registers , D0 ~ D7999 of 8000 . All registers can be set to maintain power .

Other features :

1, support Mitsubishi plc programming software , using 24V power supply , high voltage and low-voltage protection circuit to prevent accidents. Power RS485 communication port lightning protection design .

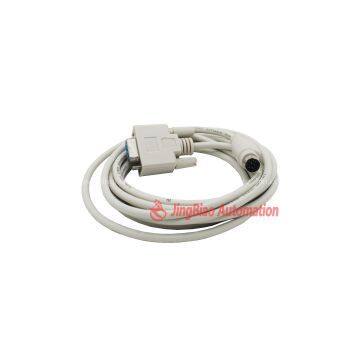

2 , download port : RS232 Xinje or Delta or communication cables , or to connect HMI

3,  communication port : RS485 communication port supports Mitsubishi and MODBUS communication protocol . Automatic identification of customers plc communication protocol , no software conversion. Check the product manual modbus slave address table .

4, MODBUS master : The Mitsubishi plc optimized communication functions of the original [ RS ] . Customers only need to enter the number of modbus function code and read the data , you can automatically exchange data modbus master . Convenience to customers.

5, high-speed counter : X0 ~ X7 of seven counters of 8 channels , up to 100K, support AB count , max. 50K, support two channels simulteneously;

6 , support all Mitsubishi interrupt instruction , and high-speed counter interrupt instruction , AB count interrupt instruction ;

7 , other functions in accordance with the instruction table with Mitsubishi FX1N ;
