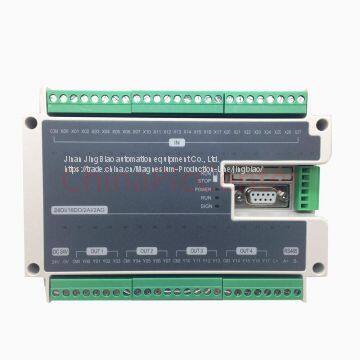

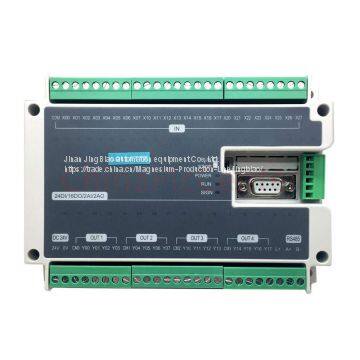

Help CenterLE3U 40MT 24DI 16DO 2AD 2DA Analog for PLC RS485 Modbus 4 Axis High-Speed Pulse 100KHz Output Stepper Motor
Related Products
-
LE3U 32MT6AD2DA 16 Input 16 Relay Output 6 Analog Input 2 Analog Output Plc ControllerNegotiableMOQ: 1 Piece -
LE-200 CPU224XP Programmable Logic ControllerNegotiableMOQ: 1 Piece
-
EC2N-40MT/MR-4AD(PT/EK)-2DA Programmable Controller for Mitsubishi FX2n PLC by GX Developer LadderNegotiableMOQ: 1 Piece
-
FX2N-40MT/MR-4AD(PT/EK)-2DA Stability Control RS232 and RS485 Relay PLC by GX Developer LadderNegotiableMOQ: 1 Piece
-
EC2N-40MT/MR With Speed Pulse Control Stepper Servo 100K Compatible for Mitsubishi FX2n PLC by GX Developer LadderNegotiableMOQ: 1 Piece
FX3U-40MT (Transistor) PLC, 4 axis
24 inputs and 16 outputs (4 axis high-speed pulse isolated outputs, max 100KHz)

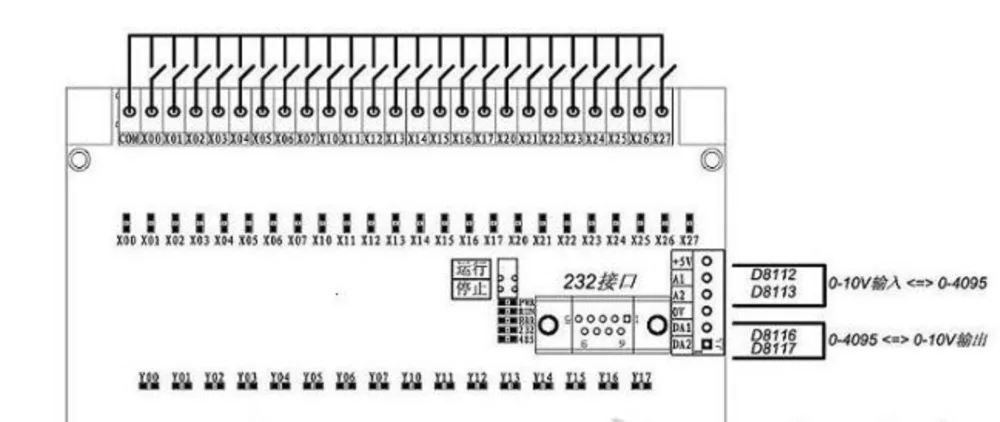

2 channel 0~10V analog inputs, 2 analog outputs; AD0 D8112 AD1 D8113 DA0 D8116 DA1 D8117
4 channel high-speed single phase pulse input . 2-ch AB phase , 10KHz
4 channel high-speed pulse output 100KHz (support PLSY, PLSR, PWM, ZRN, DRVI, DRVA, etc.) , for stepper motors and servo motors.
Clock function (Optional $5 )
24V DC power supply (24V DC switching power supply can be bought from our store) ;

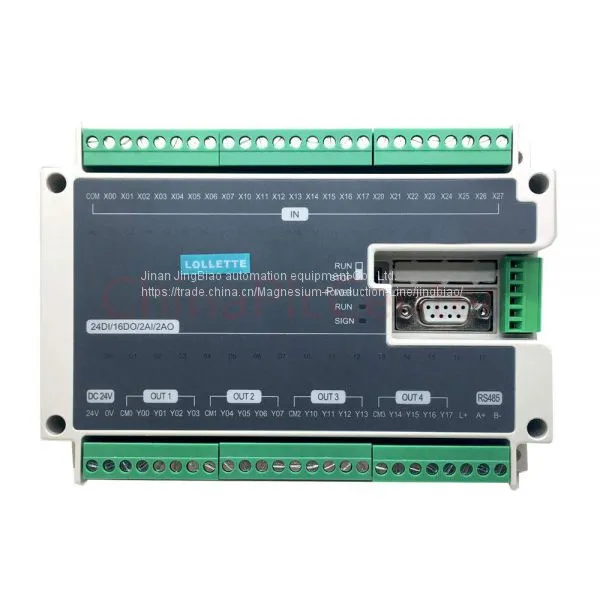

With Full input and output indicators, all clearly displayed on the front panel
Pluggable Terminal design, wiring replaced by more convenient.
Compatiable with Gx-developer 8.86 or GX-Works2

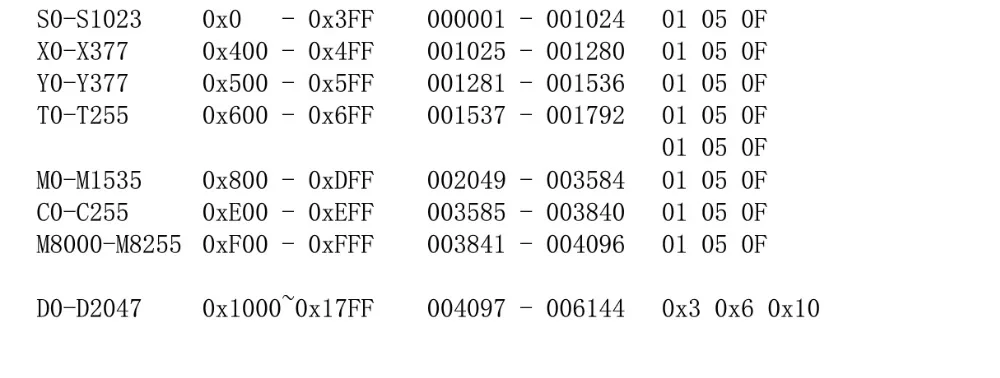

Support RS, Modbus RTU master/slave, Modbus AscII master/slav
- RS485 Station No. D8121 Mode D8126 =0 =0x2 slave station =0x20 master station
- RS232 Station No. D8401
mode D8406=0 =0x2 slave station =0x20 master statio
RS4851.new design

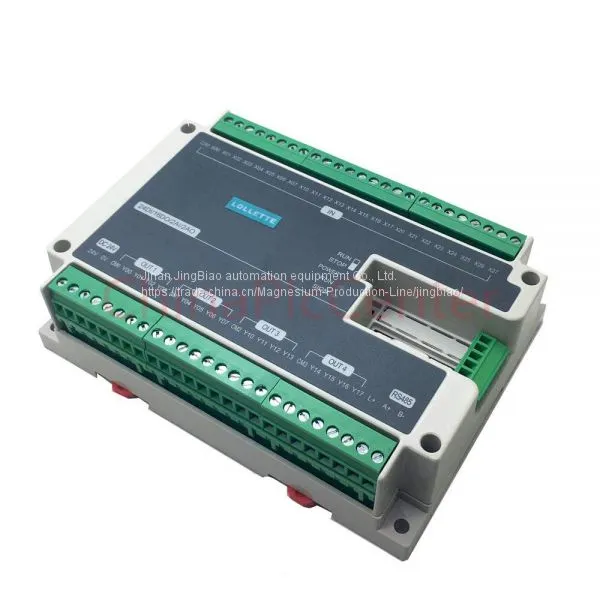

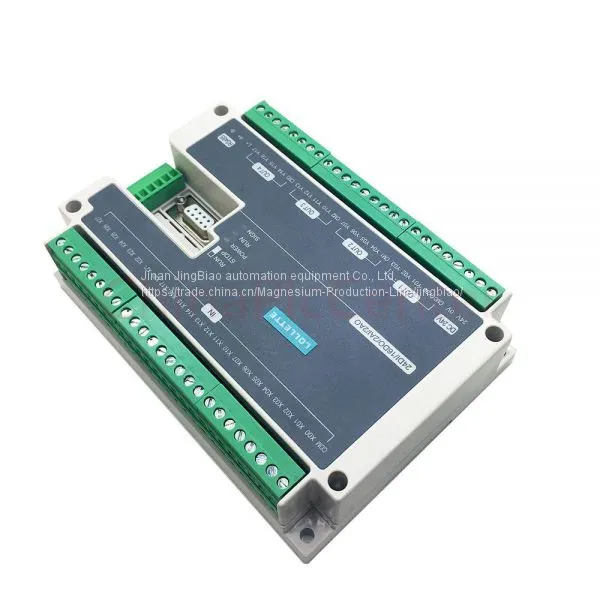

Has shell, beautiful and anti dust; back of the rail snaps for easy installation and removal, eliminating the tedious installation with screw punch; Compact design, less space; Input and output indicators clear and intuitive
Size: L * W * H = 155mm * 110mm * 43mm
2. software
Compatible Mitsubishi ladder programming software that supports the latest version of the Gx-developer 8.86 and Mitsubishi latest GX-Works2 And other software to support online monitoring, downloading.
3. Instructions
Mitsubishi fx1n, fx2n instruction (except FROM TO VRRD VRSC ABS RD3A WR3A instructions)
4. encryption
Support special encryption method, the market fx series regular crack the password is invalid, effectively protect your company's intellectual property and the fruits of labor
5. communications
1) RS -free protocol communication (Mitsubishi basic) 2) modbus RTU master and slave protocol (conveniently supported temperature controller, inverter communication) 3) modbus ASCII master-slave protocol
6. High-speed input
Supports 6-channel high-speed pulse inputs, 2 AB phase pulse input (encoder interface is fully compatible fx1n) Physical map (WYSIWYG)
Performance PK | This SMARTPLC | Other PLCs |
Production process | SMT automatic placement , reflow | Line manual welding |
Surface treatment | Fully three anti-paint spraying ,higher protectionstandard | N/A |
IO indicator | Indicator clearly visible, and display digital Facilitate debugging , monitoring | No |
Expansion Module | Can be accessed RS485 expansion module , enhanced RS instruction | Can not be extended |
PLC master CPU | Imported industrial grade 32 ARM CPU | STC 8bit CPU |
Immunity EFT test | Greater than the highest standards of industrial grade 4KV | Less than 2KV |
Analog Input | 2 channel AD Voltage signal Input | Not supported |
Output capacity | 1.Qualified relay output current 5A 2 transistor module output current of 1A, with tvs protection
| 1 inferior relay 2 mos tube called the large current output , is actually very easy to damage |
IO terminals | Pluggable replacement , easy debugging , price 0.5 yuan per person , it is Brass pins | Ordinary is not removable , the price is only 0.2 yuan per person , iron pins, easy to rust |
Programming communication port | 1 .Mitsubishi Interface with damping locked 2 .RS485, Programming and RS instruction Two interfaces can be used simultaneously ! | 232 ordinary programming line vibration easy to swap , a single interface. |
32 instruction | Support | Not supported |
P instruction | Support | Not supported |
Retentive | Support , and Retentive device range and Mitsubishi as | Does not support or only a small amount of support |
Real-time clock | Clock, Calendar ( optional) | No |
High-speed output channels | 4 channel high-speed output, support all FX1N / FX2N Relative positioning, absolute positioning command, to control servo, stepper easier | Not supported |
High-speed input detection | 6 channel high-speed counter inputs can simultaneously detect two -way AB phase encoder | Not supported |
Modbus communication | Stand by 485 Modbus RTU / ASCII master and slave communications, can Networking, Remote control, monitoring and more convenient | Not supported |
Instruction Set | 27 basic instructions , 2 step instructions 102 Basic application instructions , almost fully compatible with Mitsubishi instruction , development of alternative and more convenient | Instruction less general application instructions 50 or so, the development of alternative difficult |
2K step scan time | Less than 4MS | Greater than 50MS |
Timer | 256 (T0-T255) | 40 or so |
Counter | 256 (C0-C255) | 40 or so |
Register | 2500 (D0-D2047 D8000-D8255) domestic Up | 80 or so |
