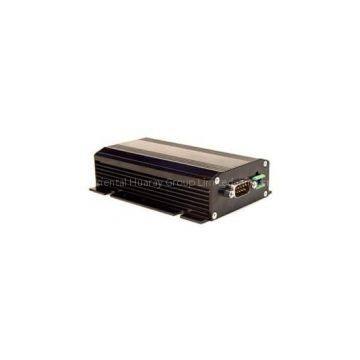

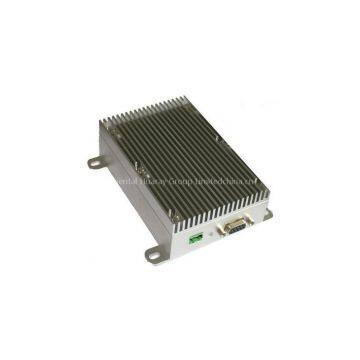

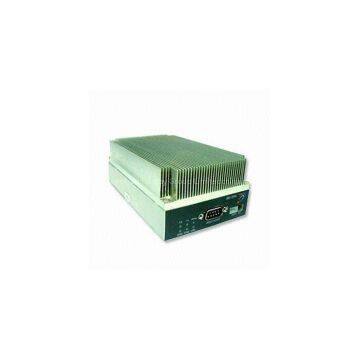

Help Center25W Large Power Radio Modem 433MHz/868MHz/915MHz, HR-1031 RF Module
Related Products
-
Wireless Rf Module With 50mW Output Power, UHF Wireless Rf Transceiver Module HR-1021NegotiableMOQ: 2 Pieces -
Wireless RF Transceiver Modules HR-1004NegotiableMOQ: 2 Pieces
-
Cost-effective USB Interface Wireless RF Transceiver Module /good for Connect PC LaptopNegotiableMOQ: 2 Pieces
-
Radio Module, Radio Modem, Wireless RF Transceiver ModuleHR-1028NegotiableMOQ: 2 Pieces
-
5W/10W Power Radio Modem Wireless RF Transceiver HR-1030NegotiableMOQ: 2 Pieces
Technical specification of HR-1031 Radio Modem:
PERFORMANCE | |
Power Output: |
25W (customized) |
RF Line-of-sight Range: |
30Km at 9600bps, 50Km at 1200bps |
RF Effective Rate: |
1200~19200bps optional |
Receiver Sensitivity: |
-123dBm@1200bps, -118dBm@9600bps |
NETWORKING | |
Networking Topology: |
Point-to-point, point-to-multipoint |
POWER | |
Supply Voltage: |
12V DC(customized according requirement) |
Transmitting Current: |
<1.5A |
Receiving Current: |
<30mA (TTL connect) |
Sleeping Current: |
<1mA |
GENERAL | |
Frequency Band: |
400MHz/420MHz/450MHz |
Communication Mode: |
Half-duplex |
Channel: |
8(Default), 16/32(customized) |
Interface: |
RS-232/RS-485/USB/TTL optional |
PHYSICAL PROPERTIES | |
Size: |
109mm*80mm*30mm (without antenna port) |
Antenna Impedance: |
50Ω SMA (multiple antenna options available) |
Operating Temperature: |
-35~+75 C(industry) |
Frequency Stability; |
±2.5ppm |
