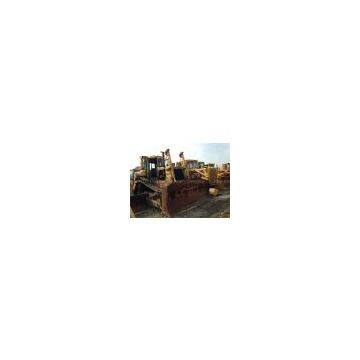

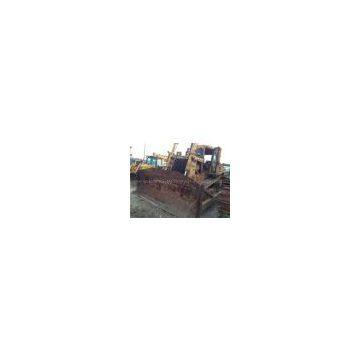

Help CenterUSED CATERPILLAR TRACK BULLDOZER D7H IN VERY GOOD WORKING CONDITION
Related Products
-
USED CATERPILLAR TRACK BULLDOZER D10N IN VERY GOOD WORKING CONDITIONNegotiableMOQ: 1 Set -
USED CATERPILLAR TRACK BULLDOZER D9H IN VERY GOOD WORKING CONDITIONNegotiableMOQ: 1 Set
-
USED KOMATSU BULLDOZER D155A-3 IN VERY GOOD WORKING CONDITIONNegotiableMOQ: 1 Set
-
USED KOMATSU BULLDOZER D375A-6 IN VERY GOOD WORKING CONDITIONNegotiableMOQ: 1 Set
-
USED KOMATSU BULLDOZER D475A-5E0 IN VERY GOOD WORKING CONDITIONNegotiableMOQ: 1 Set
1. Dimensions
A. LENGTH W/ BLADE: 5559 mm
C. HEIGHT TO TOP OF CAB: 3336 mm
D. LENGTH OF TRACK ON GROUND: 2896 mm
E. GROUND CLEARANCE: 403.5 mm
F. LENGTH W/O BLADE: 4619 mm
G. TRACK GAUGE: 1981 mm
H. STANDARD SHOE SIZE: 510 mm
2. Engine
MAKE: Caterpillar
MODEL: 3306
GROSS POWER: 231 hp 172.3 kw
NET POWER: 215 hp 160.3 kw
POWER MEASURED @: 2100 rpm
DISPLACEMENT: 10.5 L
ASPIRATION turbocharged
NUMBER OF CYLINDERS: 6
3. Operational
OPERATING WEIGHT: 23647.6 kg
FUEL CAPACITY: 488 L
COOLING SYSTEM FLUID CAPACITY: 52.4 L
HYDRAULIC FLUID CAPACITY: 115 L
FINAL DRIVES FLUID CAPACITY: 9.6 L
OPERATING VOLTAGE: 24 V
ALTERNATOR SUPPLIED AMPERAGE: 35 amps
4. Transmission
TYPE Planetary powershift
NUMBER OF FORWARD GEARS: 3
NUMBER OF REVERSE GEARS: 3
MAX SPEED - FORWARD: 11.9 km/h
MAX SPEED - REVERSE: 14.3 km/h
5. Undercarriage
GROUND PRESSURE: 76.2 kPa
GROUND CONTACT AREA: 2.9 m2
STANDARD SHOE SIZE: 510 mm
NUMBER OF SHOES PER SIDE: 40
NUMBER OF TRACK ROLLERS PER SIDE: 7
TRACK GAUGE: 1981 mm
6. Hydraulic System
RELIEF VALVE PRESSURE: 22752.7 kPa
PUMP FLOW CAPACITY: 175 L/min
Standard Blade
WIDTH: 3813 mm
HEIGHT: 1276 mm
CAPACITY: 4.5 m3
BLADE ANGLE (BOTH DIRECTIONS): 25 degrees
CUTTING DEPTH: 498 mm
7. PAYMENT AND SHIPMENT
In good working condition
Price: Negotiable
Locate in shanghai,China
Package: In bulk or by container
Deliver in 1-7 days after confirmation
Payment:T/T 30% deposite ,70% before loading
8. AFTER-SALE SERVICE & WARM TIPS
(1)、We can arrange all for the shipment if you need once we made a deal.
(2)、We have a very professional team to solve all problems or buy some quick-wear parts for you before loading.
(3)、All photos and datas of products revealed here is based on truth of machines.
(4)、All machines are imported by normal way with complete procedures.
Should you have any other question, Please feel free to contact us.
