1-60 Ton Steel Track Undercarriage (Steel Crawler Undercarriage)

1-60 Ton Steel Track Undercarriage (Steel Crawler Undercarriage) thumbnail-1
1-60 Ton Steel Track Undercarriage (Steel Crawler Undercarriage) thumbnail-2
1-60 Ton Steel Track Undercarriage (Steel Crawler Undercarriage) thumbnail-3
1-60 Ton Steel Track Undercarriage (Steel Crawler Undercarriage) photo-1

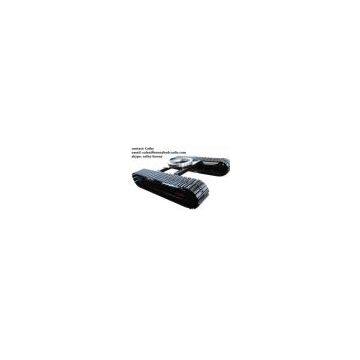

1-60 Ton Steel Track Undercarriage (Steel Crawler Undercarriage) photo-2
1-60 Ton Steel Track Undercarriage (Steel Crawler Undercarriage) photo-3
US$ 1000 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
kemer
Place of Origin:
China
Model Number:
sales@bonnyhyraulic.com
Contact Supplier Request Quote Chat Now
Ningbo Pioneer Hydraulic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kemer
Place of Origin China
Model Number sales@bonnyhyraulic.com

We are an experienced company specialized in manufacturing steel track undercarriage and rubber track undercarriage. we make custom track systems for your mobility needs, and our track undercarriage can carry up to 50ton,and supporting dual-speed final drive  and travel 0-7km/h at grades up to 60%.

Application

Special design catered to customer specifications. With years of experience we can offer the track design flexibility, rapid response and solutions that are always highly effective.

For application on drilling rigs, excavators, crushers, cranes, aerial platform, etc. with high efficiency and adaption of vile working condition.

Customize Solution

We have many professional engineers devoting to design the track undercarriages to meet different customers  requirements. With our years of experience, we can take your concept from prototype to production. We are committed to our goal of exceeding your expectations and requirements for quality, reliability, and on-time delivery.

Competitive Price

We can provide our track undercarriage with most competitive price,great quality and best service.

If you have any question or need any help, please feel free to contact with us. Our service team is ready to provide best service for you.

Features:

1. Adopt steel tracks or .steel tracks and block rubber.

2. The track motor can be fixed displacement or variable displacement concealed planetary gearbox and hydraulic motor, such as Nabtesco (Japen), Brevini (Italia). If you need, we can also provide track motor made by our own factory.

3. The beam is made of Q345B with high loading capacity.

4. It can also be designed and manufactured on customers' request.

5. It is widely applied in all kinds of large drilling rig, excavator, paver, Aerial Working Platform and construction engineering machines.

For the following dimension and specification, it is just for your reference, we can also design and manufacture the undercarriage with load capactiy from 500-50,000kgs for widely application based on your requirements.

Skype: cathy-bonny

Email: kemercn at hotmail dot com



MODEL

Dinamic
capacity

Static
capacity

Weight
kg.

Press. Bar

oil flow
L/min

Torque
Nm to
engine

Grad.

Speed
km/h

ST-3500

3500

4000

750

220

35

4723

65%

2/3.2

ST-6000

6000

7000

1350

220

55

8330

65%

2/3.7

ST-8000

8000

9500

1830

300

82

11700

65%

2.8/4.7

ST-10000

10000

11300

2350

350

100

14800

65%

3/5.1

ST-12000

12000

15000

2950

350

124

22500

65%

2.9/4.9

ST-15000

15000

18000

3300

350

140

24000

65%

3.2/5.5

ST-20000

20000

25000

4300

350

220

38000

65%

3.5/5.4

ST-30000

30000

37000

6500

330

260

59000

65%

2.5/4.6

ST-40000

40000

480000

7100

350

290

72800

65%

2.3/4.3



MODEL

A
Length

B
Center Distance

C
Height

D
Total Width

E
Width of track shoe

F
Height of Cross beam

No. of
roller

ST-3500

2030

1500

485

1800

300

225

4+4

ST-6000

2467

1950

549

1700

300-400

240

5+5

ST-8000

2783

2265

548

1800

400-450

255

8+8

ST-10000

3800

3200

600

1700

400-500

280

9+9

ST-12000

3282

2575

720

2000

400-600

345

9+9

ST-15000

3666

2923

753

2000

500-800

360

8+8

ST-20000

4065

3323

786



500-800

375

8+8

ST-30000

4530

3730

836



500-800

405

9+9

ST-40000

4888

4090

880



500-800

420

10+10
