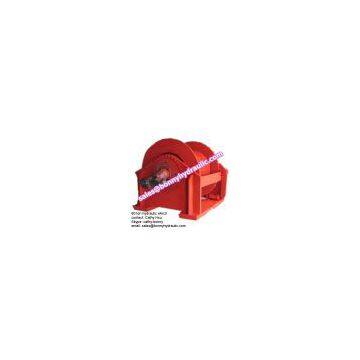

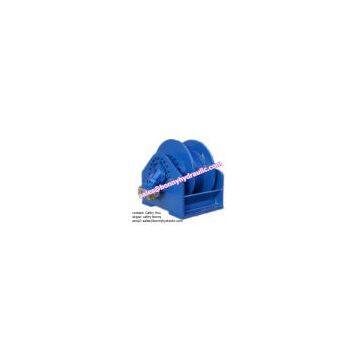

Custom Built High Speed Hydraulic Winch
US$ 1000 - 1000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
bonny
Place of Origin:
China
Model Number:
sales@bonnyhydraulic.com
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Small Compact Hydraulic WinchUS$ 1000 - 1000MOQ: 1 Set -
Compact Hydraulic Winch for Crane an Drilling RigUS$ 1000 - 1000MOQ: 1 Set
-
Track Undercarriage for Custom BuiltUS$ 1000 - 1000MOQ: 1 Piece
-
Steel Track Undercarriage 1-60 TonUS$ 1000 - 1000MOQ: 1 Piece
-
Steel Crawler Track UndercarriageUS$ 1000 - 1000MOQ: 1 Piece
Brand Name
bonny
Place of Origin
China
Model Number
sales@bonnyhydraulic.com
we manufacture the most comprehensive range of Hydraulic winch for widely application,including the drilling rig, crane, piling rig, dredger, marine
Model: AF series hydraulic winch, hoisting winch, dredger winch, crane winch, drilling rig winch
Pull:5700-45000kg
Speed:0-83m/min
AF series high-power hoisting winches are widely used in ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery.It is the best choice for those situations which requires large power, high speed and high security.
Special Features:
1.Two-or three-stage planetary gearboxes, smooth operation and reasonable structure.
2.Normally closed friction type brake, high braking torque, safe and reliable operating.
3.Small volume, compact structure and high transmission efficiency.
4.Axial fixed or variable hydraulic motor with long life operating.
5.Mounting frame is available on request.
6.Balance valve, shuttle valve, limit switch and other accessories are also available on request.
Pull:5700-45000kg
Speed:0-83m/min
AF series high-power hoisting winches are widely used in ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery.It is the best choice for those situations which requires large power, high speed and high security.
Special Features:
1.Two-or three-stage planetary gearboxes, smooth operation and reasonable structure.
2.Normally closed friction type brake, high braking torque, safe and reliable operating.
3.Small volume, compact structure and high transmission efficiency.
4.Axial fixed or variable hydraulic motor with long life operating.
5.Mounting frame is available on request.
6.Balance valve, shuttle valve, limit switch and other accessories are also available on request.
|
Pull Force (KN)
|
Rope Speed (m/min)
|
Diameter of rope (mm)
|
Capacity of rope (m)
|
Working pressures diff. (Mpa)
|
Flow Rate (L/min)
|
||
|
1st layer
|
top layer
|
||||||
|
AF5700
|
5700
|
4500
|
60
|
16
|
107
|
25
|
160
|
|
AF7700
|
7700
|
6000
|
52
|
18
|
118
|
25
|
180
|
|
AF9600
|
9600
|
7500
|
43
|
20
|
118
|
25
|
180
|
|
AF12800
|
12800
|
9800
|
43
|
24
|
118
|
27
|
220
|
|
AF15000
|
15000
|
12800
|
39
|
24
|
110
|
25
|
220
|
|
AF18500
|
18500
|
14600
|
85.3
|
28
|
162
|
27
|
380
|
|
AF25000
|
25000
|
19500
|
48.1
|
30
|
162
|
27
|
380
|
|
AF30000
|
30000
|
23000
|
32
|
32
|
169
|
30
|
380
|
|
AF45000
|
45000
|
34700
|
32
|
42
|
169
|
30
|
380
|
For above specification, it is for your reference. We can also manufacture the winch with pull force up to 50,000kgs based on your requirements.
