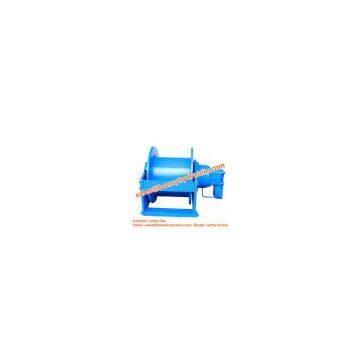

Small Compact Hydraulic Winch
US$ 1000 - 1000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
bonny
Place of Origin:
China
Model Number:
sales@bonnyhydraulic.com
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Compact Hydraulic Winch for Crane an Drilling RigUS$ 1000 - 1000MOQ: 1 Set -
Track Undercarriage for Custom BuiltUS$ 1000 - 1000MOQ: 1 Piece
-
Steel Track Undercarriage 1-60 TonUS$ 1000 - 1000MOQ: 1 Piece
-
Steel Crawler Track UndercarriageUS$ 1000 - 1000MOQ: 1 Piece
-
Custom Built Rubber Track UndercarriageUS$ 1000 - 1000MOQ: 1 Piece
Brand Name
bonny
Place of Origin
China
Model Number
sales@bonnyhydraulic.com
we manufacture the most comprehensive range of Hydraulic winch for widely application,including the drilling rig, crane, piling rig, dredger, marine
BG series hoisting winches (hydraulic winch, hoisting winch, compact winch) are widely used in overhead working truck, lorry mounted crane, drill machine, mirror crane, ship equipments and so on. It is the best choice for those situations that requires the narrow space and light weight.
Special Features
♦Floating type planetary gearbox, smooth operation and reasonable structure.
♦ Normally closed friction type brake, high braking torque, safe and reliable operating.
♦ Small volume, compact structure and high transmission efficiency.
♦ Long life Danfoss hydraulic orbit motor
♦ Mounting frame is available on request.
♦ Balance valve, shuttle valve, limit switch and other accessories are also available on request.
Special Features
♦Floating type planetary gearbox, smooth operation and reasonable structure.
♦ Normally closed friction type brake, high braking torque, safe and reliable operating.
♦ Small volume, compact structure and high transmission efficiency.
♦ Long life Danfoss hydraulic orbit motor
♦ Mounting frame is available on request.
♦ Balance valve, shuttle valve, limit switch and other accessories are also available on request.
|
Model
|
Pull Force (KN)
|
Rope Speed (m/min)
|
Diameter of rope (mm)
|
Capacity of rope (m)
|
Working pressures diff. (Mpa)
|
Flow Rate (L/min)
|
|
|
1st layer
|
top layer
|
||||||
|
BG500
|
500
|
380
|
63
|
6
|
67
|
14
|
40
|
|
BG800
|
800
|
680
|
54
|
8
|
53
|
14
|
50
|
|
BG1100
|
1100
|
870
|
41
|
8
|
53
|
14
|
50
|
|
BG1300
|
1300
|
1000
|
45
|
9
|
48
|
14
|
55
|
|
BG1500
|
1500
|
1200
|
42
|
10
|
60
|
21
|
55
|
|
BG2000
|
2000
|
1600
|
35
|
10
|
60
|
21
|
55
|
|
BG2500
|
2500
|
2000
|
52
|
12
|
52
|
21
|
100
|
|
BG2600
|
2600
|
2000
|
54
|
12
|
76
|
21
|
100
|
Skype: cathy-bonny
email: sales at bonnyhydraulic dot com
email: sales at bonnyhydraulic dot com
For above specification, it is for your reference. We can also manufacture the winch with pull force up to 50,000kgs based on your requirements.
