Home > Manufacturing & Processing Machinery > Lifting Equipment > Winch > High Power Hydraulic Winch

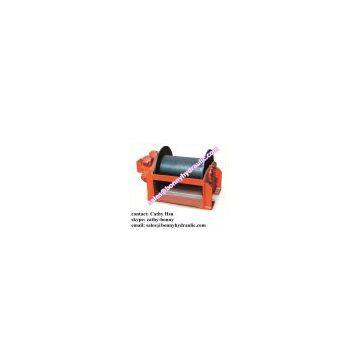

High Power Hydraulic Winch

Name: High Power Hydraulic Winch
Brand: bonny
SKU: 148435854
Availability: InStock

US$ 1000 - 1000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

bonny

Place of Origin:

China

Model Number:

sales@bonnyhydraulic.com

Contact Supplier Request Quote Chat Now

Ningbo Pioneer Hydraulic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name bonny

Place of Origin China

Model Number sales@bonnyhydraulic.com

Pull force of hydraulic winch: 1-60 ton

rope speed: 0-200m/min

dimension: custom built

GH series hydraulic winches are widely used in marine deck machinery, harbor, petroleum, drill machine, mining, geological exploration and construction machinery.

Special Features
♦ One-or two-stage planetary gearboxes, smooth operation and reasonable structure.
♦ Normally closed friction type brake, high braking torque, safe and reliable operating.
♦ Small volume, compact structure and high transmission efficiency.
♦ Radial piston hydraulic motor with long life operating.
♦ Mounting frame is available on request.
♦ Balance valve, shuttle valve, limit switch and other accessories are also available on request.

For the following specification, it is for your reference. We can also design and maufacture the winch basedon your requirements.

Model	W.L.L. 1st layer	W.L.L. top layer	Rope Speed	Rope diam.	Capacity of Rope	Working Pressure	Max Supply Oil Flow
	kgf	kgf	m/min	mm	m	Mpa	L/min
GH1000	1000	860	25	10	60	15	25
GH2000	2000	1700	25	12	50	14	50
GH3000	3000	2500	35	15	65	16	95
GH4000	4000	3300	35	16	65	14	125
GH5000	5000	4200	40	20	87	14	175
GH6000	6000	4900	40	21.5	68	14	215
GH8000	8000	6700	40	24	100	14	270
GH10000	10000	7800	40	28	90	13	380
GH12000	12000	10000	30	30	176	17	270
GH15000	15000	12000	30	34	153	18	320
GH18000	18000	15000	30	38	143	18	375
GH20000	20000	16000	32	40	150	18	440
GH24000	24000	19000	32	42	140	17	480
GH25000	25000	20000	14	42	110	14	360
GH28000	28000	23000	14	44	105	14	380
GH30000	30000	25000	16	44	155	18	370
GH35000	35000	29000	16	46	150	18	390
GH40000	40000	33000	16	48	145	18	440
