1-30 Ton Custom Built Rubber Track Undercarriage

1-30 Ton Custom Built Rubber Track Undercarriage thumbnail-1
1-30 Ton Custom Built Rubber Track Undercarriage thumbnail-2
1-30 Ton Custom Built Rubber Track Undercarriage thumbnail-3
1-30 Ton Custom Built Rubber Track Undercarriage photo-1

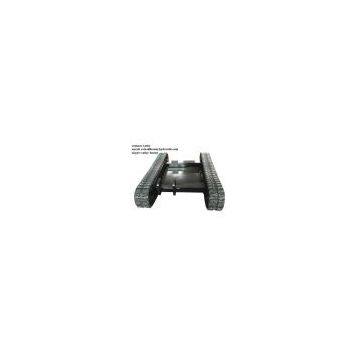

1-30 Ton Custom Built Rubber Track Undercarriage photo-2

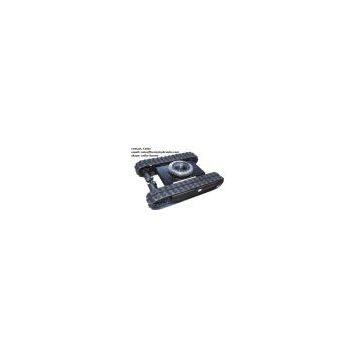

1-30 Ton Custom Built Rubber Track Undercarriage photo-3
US$ 1000 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
kemer
Place of Origin:
China
Model Number:
sales@bonnyhydraulic.com
Contact Supplier Request Quote Chat Now
Ningbo Pioneer Hydraulic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kemer
Place of Origin China
Model Number sales@bonnyhydraulic.com

We are an experienced company specialized in manufacturing steel track undercarriage and rubber track undercarriage. we make custom track systems for your mobility needs, and our track undercarriage can carry up to 50ton,and supporting dual-speed final drive  and travel 0-7km/h at grades up to 60%.

Application
Special design catered to customer specifications. With years of experience we can offer the track design flexibility, rapid response and solutions that are always highly effective.

For application on drilling rigs, excavators, crushers, cranes, aerial platform, etc. with high efficiency and adaption of vile working condition.

Customize Solution
We have many professional engineers devoting to design the track undercarriages to meet different customers  requirements. With our years of experience, we can take your concept from prototype to production. We are committed to our goal of exceeding your expectations and requirements for quality, reliability, and on-time delivery.

Competitive Price
We can provide our track undercarriage with most competitive price,great quality and best service.

If you have any question or need any help, please feel free to contact with us. Our service team is ready to provide best service for you.

Features:

1.  Adopt high strength engineering rubber track.
2.  The track motor can be fixed displacement or variable displacement concealed planetary gearbox and hydraulic motor, such as Nabtesco (Japen), Brevini (Italia). If you need, we can also provide track motor made by our own factory.
3. The beam is made of Q345B with high loading capacity.
4. It can also be designed and manufactured on customers' request.
5. It is widely applied in all kinds of mini- drilling rig, mini-excavator, lawn mower, Aerial Working Platform and construction engineering machines.

For the following dimension and specification, it is just for your reference, we can also design and manufacture the undercarriage with load capactiy from 500-50,000kgs for widely application based on your requirements.

MODEL Dinamic
capacity		 Static
capacity		 Weight
kg.		 Press.Bar oil flow
L/min		 Torque
Nm to
engine		 Grad. Speed
km/h
RT-1500 1200 1500 330 270 17 2000 65% 1.7
RT-2500 2500 3000 380 220 35 4723 65% 2/3.2
RT-3500 3500 4000 650 220 35 4723 65% 2/3.5
RT-5000 5000 6000 900 220 55 8330 65% 2/3.7
RT-6000 6000 7000 1280 220 55 8330 65% 2/3.7
RT-8000 8000 9500 1550 300 82 11700 65% 2.8/4.7


MODEL A
Length		 B
Center Distance		 C
Height		 D
Total Width		 E
Width of track shoe		 F
Height of Cross beam		 No. of
roller
RT-1500 1420 1066 350 980 230 165 3+3
RT-2500 1850 1370 480 1220 250 245 4+4
RT-3500 1980 1511 500 1520 300 250 5+5
RT-5000 2500 1950 550 1800 350 265 6+6
RT-6000 2905 2355 550 1800 400 265 7+7
RT-8000 2950 2450 600 1800 400 310 7+7
