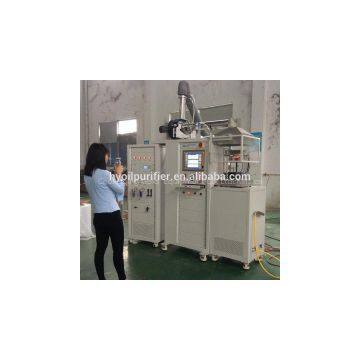

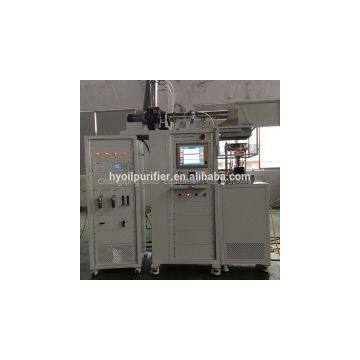

ISO5660 / BS 476 Cone Caloriemeter

ISO5660 / BS 476 Cone Caloriemeter (GDPX-07007)

The name Cone Calorimeter is derived from the conical heater as used by Dr. Vytenis Babrauskas to inspect test

specimen(100×100) with flux up to 100/ for the bench scale oxygen depletion of his development.


Cone Calorimeter is based on the theory that pure combustion calories are in proportion to a necessary amount of oxygen

for combustion and 13.1 MJ/kg is generated whenever oxygen 1kg is consumed, and heat emission, ignition time, oxygen

consumption, CO and CO2 generation, and flow of ignited gases as generated from test materials are measured.


As properly sized for lab use, it is designed to enable auto operation of all units connected with DAQ(Data Acquisition)

Program so that user can conveniently perform test. Also, it reduces installation space and automatically advances test with

the 17inch Touch Screen. This tester fully meets the international standard.

Features:

 Integrated body and 19 analysis rack

17inch touch screen panel type PC for the whole control and automatic testing

Automatic Spark Igniter to facilitate measurement of ignition time

Auto Split Shutter automatically opened to transmit radiation to the sample

Absorber-type glass protection door to facilitate sample observation during test and opening and closing

UK Servomexs Gas Analyzer to exactly measure O2, CO, and CO2 concentrations up to 0.02%

Port, heated filter, and heated line to measure toxic gases

MFC(Mass Flow Controller) used for all gas flows, improving accuracy of and automatically controlling flux

Portable water cooling system without need for waterworks and plumbing when using the Heat Fluxmeter (for ISO 5660)

UK RS Load Cell with improved accuracy to measure mass loss rate CC 2006 DAQ(Data Acquisition) Program controllable with the touch screen panel PC
