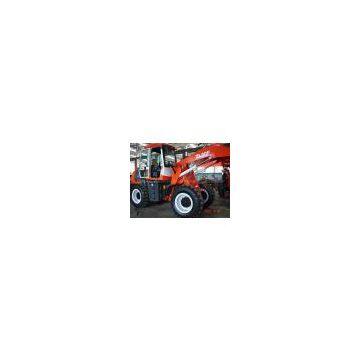

Help Center3T CE Wheel Loader ZL30FS
Related Products
Rated load: 3000kg Total weight:7000kg Dim.: 6900*2050*2950 mm Engine: 83kw Diesel Engine Automatic Transmission Applications: 3.0T Wheel loader ZL30F is mainly used in road construction, urban construction, environment cleaning, coal yard, sand and stone quarry, small and medium civil engineering, railway station, wharf, freight yards, warehouse, etc. to shovel and load or move earth, sand and stone, coal cinder, trash and other bulk materials. Compact wheel loader with 3.0 ton capacity can be used together with 3-5 tons tractor and truck to load and unload materials and also can be used to carry out the works such as bulldozing, shoveling and digging, dragging, stacking, lifting and traction, etc.
Main Technical Parameters Wheel Loader Model: ZL30FS Item Parameters Performance 1 .Rated Load 3000 kg 2. Total Weight 7000 kg 3. Rated Bucket Capacity 1.5 - 1.9 m3 4. Max. Tractive Force 61 KN 5. Max. Breakout Force ≥ 72 KN 6. Max. Gradeability 38° 7. Max. Dumping Height 3500 mm 8. Max. Dumping Reach 1300 mm 9. Raising Time ≤ 6.0 s 10. Total Cycle Time ≤ 11.5 s 11. Overall Dimensions (L x W x H) 6900*2050*2950 mm 12. Min. Turning Radius 3800 mm Engine 13. Model WEICHAIHUAFENG 4RMAZG Turbocharged Engine YUCHAI YCD4J22T-115 Turbocharged Engine 14. Type Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine 15. Rated Power 83 kW/85 kW 16. Rated Speed 2400 rpm 17. Min. Fuel Consumption Ratio ≤ 210 g/kW@h Transmission System 18. Hydraulic Torque Converter ZL280 Split Torque Converter 19. Gear Shift 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed 20. Max. Speed 25 km/h Drive Axle 21. Model of Axle ZL20 Hub Reduction Axle (big) 22. Wheel Tread 1650 mm 23. Wheel Base 2600 mm Drive 24. Mode 4-wheel Drive Hydraulic System 25. System Working Pressure 20 Mpa 26. Fuel Tank Capacity 100 L Brake System 27. Service Brake Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels 28. Parking Brake Hand Lever Flexible Shaft Controlled Disc Brake Tyre 29. Type Specification 16/70-24-16PR 30. Front Tyre Pressure 0.40 Mpa 31. Rear Tyre Pressure 0.35 Mpa
