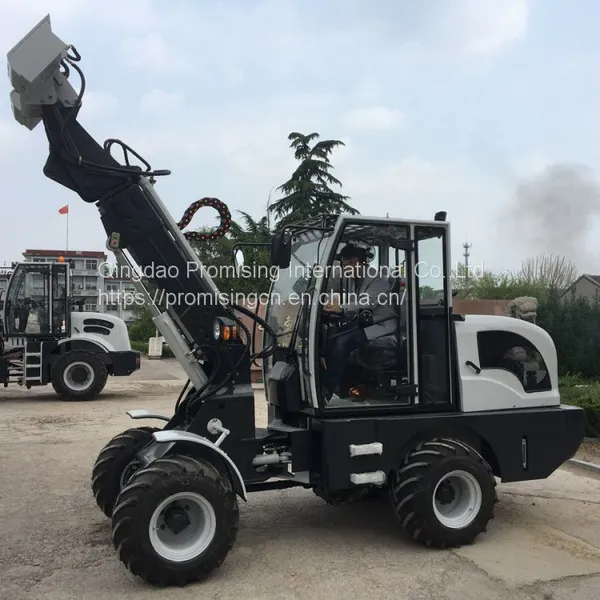

1.0T New Telescopic Loader ZL10

1.0T Capacity Telescopic Wheel Loader ZL10

Applications:

The telescopic wheel loader features a telescopic boom for additional height, added versatility and greater production. This wheel loader with telescopic arm offers excellent maneuverability, overall machine stability and the telescopic boom provides extra reach for stacking and dumping.

Features:

1. Telescoping boom for extra reach, stacking and dumping height.

2. Operator station offers a spacious and functional layout for operator comfort.

3. Hydraulically operated quick-hitch allows for efficient changing from one accessory to another without leaving the operator's station.

4. All wheel steer and rigid frame provide excellent maneuverability and constant payload stability even when turning.

Technical Specifications:

1. Rated Load: 1000kg

2. Total Weight: 3600kg

3. Rated Bucket Capacity: 0.5CBM

4. Bucket Width: 1600mm

5. Max. Breakout Force: 36KN

6. Max. Gradeability: 30Deg.

7. Max. Dumping Height: 4000mm

8. Raising Time:<5.0s

9. Overall Dimensions: 4350*1790*2720mm

10. Min. Turning Radius: 4500mm

11. Engine Model: CHANGCHAI ZN490B 39 kW / 53HP 2400rpm Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine

12. Engine Starting Mode: Electric

13. Hydraulic Torque Converter: ZL265 Integrated Hydraulic Torque Converter

14. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

15. Max. Speed: 25km/h

16. Wheel Tread: 1500mm

17. Wheel Base: 2400mm

18. Min. Ground Clearance: 260mm

19. Drive Mode: 4-wheel Drive

20. Service Brake: Foot Pedal Vacuum Assisted Hydraulic, Expansion-shoe Brake on 4 Wheels

21. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake

22. Tyre Type Specification: Pneumatic Tire 12-16.5-14PR

23. Front Tyre Pressure: 0.40Mpa

24. Rear Tyre Pressure: 0.35Mpa

Note:

1. All photos are for reference only.

2. Machines shown may include optional parts.

3. All specifications and design characteristics are subject to change without prior notice.
