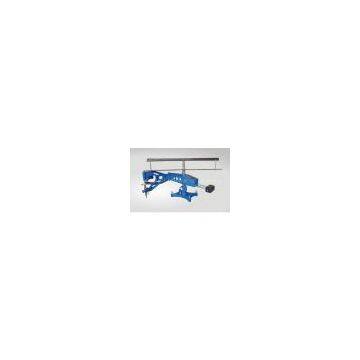

Profiling Cutting Machine
US$ 300 - 300
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BORTE
Place of Origin:
China
Model Number:
CG2-150/150A/150B/150C
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
BORTE
Place of Origin
China
Model Number
CG2-150/150A/150B/150C
●Volume production cutting of identical shape components can be cut by profiling the pattern.
●Adopt SCR technology control speed, moving steadily.
●The main body is made of high-strength diecasting aluminum.
●Oxygen and Acetylene hoses are made of high quality rubber.
●The machine is a low cost system for volume.
| Technology specification | ||||
| Model | CG2-150 | CG2-150A | CG2-150C | CG2-150B |
| Input power | 220V±10% 50HZ | |||
| Modes of cutting | Gas cutting | |||
| Cutting thickness | 5-100mm | |||
| Cutting speed(mm/min) | 50-750 | |||
| Length of straight-line cutting(mm) | 1200mm | 1650mm | 2140mm | 1200mm |
| Diameter of circular cutting | φ20-φ600mm | φ20-φ1800mm | φ30-φ2100mm | φ20-φ600mm |
| Max size of cutting square | 500x500mm | 1270x1270mm | 1480x1480mm | 500x500mm |
| Dimension(mm) | 1190x335x800 | 1190x335x870 | 1190x335x1000 | 1190x335x800 |
| Weight of machine | 57kgs | 59kgs | 65kgs | 61kgs |
Remark:
●The CG2-150B is with 1.8meters track.
