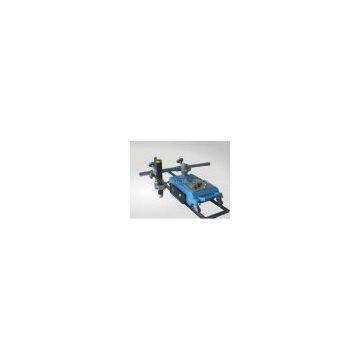

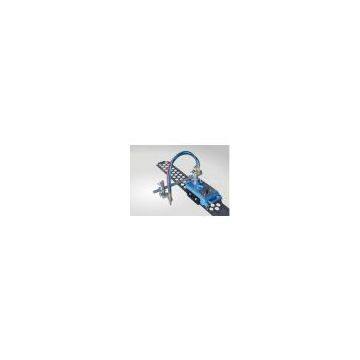

Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Processing Machinery Parts > Straight Plate Cutting Machine
US$ 300 - 300
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BORTE
Place of Origin:
China
Model Number:
CG1-30/30B/30P/100
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
BORTE
Place of Origin
China
Model Number
CG1-30/30B/30P/100
●Adopt SCR technology control speed, moving steadily.
●The main body is made of high-strength diecasting aluminum.
●Oxygen and Acetylene hoses are made of high quality rubber.
● quick connectors for connecting the hoses.
●Mainly for straight line cutting and for circular cutting.Groove I,Y,V shape also.
| Technology specification | ||||
| Model | CG1-30 | CG1-30B | CG1-30P | CG1-100 |
| Input power | 220V±10% 50HZ | |||
| Modes of cutting | Gas cutting | Gas cutting | Plasma cutting | Gas cutting |
| Track type | convex type | concave type | convex type | convex type |
| Cutting thickness | 6-100mm | 6-100mm | as per plasma power source | 6-100mm |
| Cutting speed(mm/min) | 50-750 | 50-750 | 50-4500 | 50-750 |
| Diameter of circular cutting | φ200-φ2000mm | φ200-φ2000mm | φ200-φ2000mm | φ200-φ2000mm |
| Dimension(mm) | 470x230x240 | 470x230x240 | 470x230x240 | 470x230x240 |
| Weight of machine | 18kgs | 18kgs | 14kgs | 20kgs |
| Weight of the track | 5kgs | 8kgs | 5kgs | 5kgs |
Remarks:
●The only difference between the model CG1-30 and CG1-30B is the track type.
●The CG1-30P is with a plasma-cutting interface.
●CG1-100 is with too cutting torches.
