Brand Name:
BORTE
Place of Origin:
China
Model Number:
PNC-1000/1250/1500
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
BORTE
Place of Origin
China
Model Number
PNC-1000/1250/1500

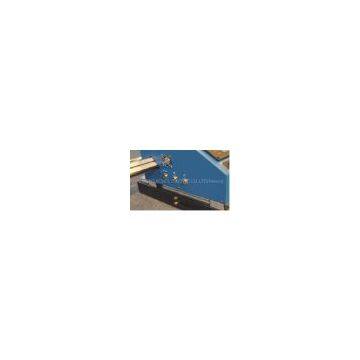

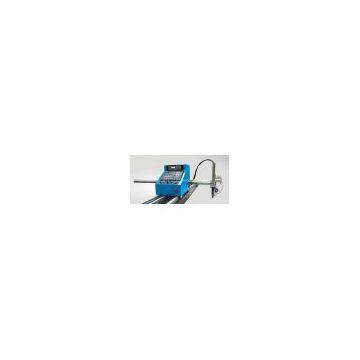

●The Portable NC cutting machines(PNC series) can cut any shapes using flame and plasma cutting processes.These machines are economical,compact,lightweight and high precision,making them very portable and easy for an operator to carry the machine from job to job,for both indoor and outdoor cutting.
●The machine is an upgraded substitute for manual-cutting/semi-automatic cutting/profiling cutting machines.
●The machine is our patented product.
| Technology Parameters: | |||
| Model | PNC-1000 | PNC-1250 | PNC-1500 |
| Input power voltage | Standard:220V ±15% 50HZ/Optional:110V 60HZ | ||
| Modes of cutting | Flame/Plasma | ||
| Beam Width(mm) | 1500mm | 1750mm | 2000mm |
| Track length(mm) | standard:2000 | standard:2000 | standard:2500 |
| Optional longer Length available(maximum length:10000mm) | |||
| Effective cutting width | ≤1000mm | ≤1250mm | ≤1500mm |
| Effective cutting length | 500mm less than the track length. | ||
| Cutting Thickness (Flame) | 6~150mm(select the cutting nozzle size) | ||
| Cutting Speed (Flame) | 0~4000mm/min | ||
| Gas type for flame cutting | Oxygen + acetylene or Oxygen+propane | ||
| Fuel gas pressure | ≤0.1Mpa | ||
| Oxygen pressure | ≤0.7Mpa | ||
| Cutting precision | 0.2MM | ||
| CNC system | F2100B | ||
| Nesting software | FastCAM standard version. |
| Packing details(2packages/set) | Dimension | Net Weight | Gross Weight |
| Machine body | 570x460x590mm | 28kgs | 35kgs |
| Beam+Track | 2100x410x330mm | 85kgs | 95kgs |
