Help Center10/100M Fiber Media Converter
Related Products

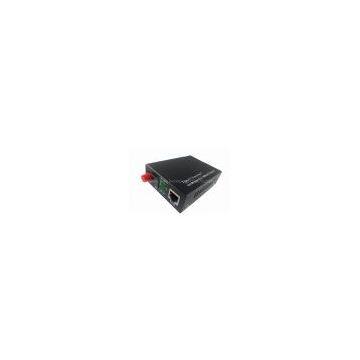

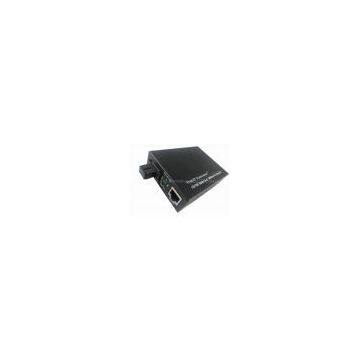

The device is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media, which are 10/100Base-T UTP and 10/100Base-FX or 10/100Base-T UTP and 10/100Base-FX. It mainly used for fiber network far distance (20/40/60/80/120km) transmission, supports 10/100M or 10M, 100M transmission rate. Fiber port and UTP can work through 10M or 100M rate.
--Single-mode, multi-mode, WDM Bi-direction types are available,internal and external power optional
--Fully complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standard
--Auto-negotiation of 10/100Mbs rate and Auto-MDI/MDIX for TX port
--Auto-detection of half/full duplex transfer mode for TX port
--Provide switch configuration of half/full duplex transfer mode for FX port
--The Ethernet interface supports jumbo frames (1600bit), which can match with the switch product complied with IEEE802.10 protocol
--Support the LFP (Link Fault Pass Through) function ,when the fiber used connecting transceiver and UTP has fault, transceivers will notify the other end indicating fault information
--With Fiber Alter function, that is, after not receiving optical signal automatically cut off optical circuit (opened on network management);
--Support FX half/full duplex and link fault alarm function switch optional
--Support UTP cross connection switch optional, convenient for system debugging and setup
--Low power consumption, Low heating, can be stable work for a long time;
|
Standard Protocol |
IEEE802.3 |
|
|
IEEE802.3u |
||
|
10/100Base-TX |
||
|
100Base-FX |
||
|
Transmission speed |
10M/100M auto-negotiation |
|
|
Transmission mode |
Full-duplex and semi duplex(auto-negotiation) |
|
|
Conversion mode |
Media conversion, storage transmission, direct transmission |
|
|
Interface |
UTP: RJ-45 |
Fiber connector: SC/ST/FC |
|
Twisted-pair |
Cat5 UTP cable (the max distance up to 100m) |
|
|
Fiber Cable |
8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km) |
|
|
50/125, 62. 5/125μm(the max distance up to 2km or 5km) |
||
|
Wavelength |
Multi Mode: 850nm |
Single Mode: 1310/1550nm |
|
MAC address |
1K |
|
|
Buffer space |
288KB |
|
|
Packet length |
Storage transmission:2046Bytes,straight-through,infinite. |
|
|
Time-delay |
9.6us |
|
|
Bit error rate |
<1/1000000000 |
|
|
MTBF |
80,000 hours |
|
|
Power supply |
AC100~250V on media converter rack mounts |
|
|
Power dissipation |
<2.5W |
|
|
Operating temperature |
0~50 Celsius degree |
|
|
Storage temperature |
-20~70 Celsius degree |
|
|
Humidity |
5%~90% (no condensation) |
