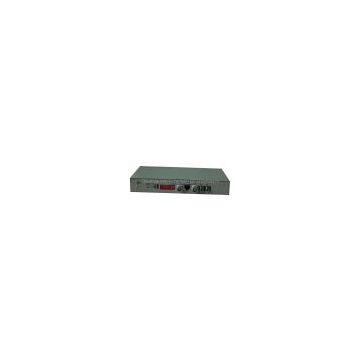

Help CenterFE1-ETH Converter
Related Products
-
Unframed E1/ETH ConverterUS$ 65 - 450MOQ: 100 Cases -
Sell Myshine CPSDBT009 Wireless Bluetooth Stereo SpeakerNegotiableMOQ: 500 Pieces
-
Sell Myshine CPSDBT0010 Mini Portable Bluetooth Stereo SpeakerNegotiableMOQ: 500 Pieces
-
Sell Myshine CPSDBT011 Dynamic Speaker and Build-in MIC Wireless Bluetooth SpeakerNegotiableMOQ: 500 Pieces
-
Sell Myshine CPSDBT015 Bluetooth SpeakerNegotiableMOQ: 500 Pieces
Description:
The device provides the transition between ITU-T G.703 (E1) standard E1interface and 10/100Base-T interface. It is a high capability, self-adaptable long-distance Ethernet net bridge. The Ethernet interface support jumbo frames (2036bit); have the function of E1 interface loop return examination, avoid the converter crashed because of interface loop return; the device start the standby chain while E1 line connection-less. Learn LAN MAC address uninterruptedly, transmit the MAC address as frame. Make TCP/IP transparent, provide communication safe, seamless connection.
feature:
1. Based on self-copyright IC;
2. Ethernet interface support jumbo frames (2036bit);
3. Have the function of E1 interface loop return examination, avoid the converter crashed because of interface loop return
4. Examines if the malfunction because of the device crashed or E1 line is broken while lose signal or frame;
5. Can set the E1 line not to send the LINK signal to Ethernet interface while it is error;
6. Ethernet interface 10M/100M, half/full duplex self adaptable, supporting VLAN;
7. Ethernet supports AUTO-MDIX(crossed line and straightly connected line self-adaptable );
8. Realizes set the Ethernet port in 5 random mode, realize AUTO-MDIX function on-off;
9. Provides 2 clock types: E1 mast clock, E1 line clock;
10. Provides 3 kinds of loop-return function: namely E1self-looping at local end (ANA), Ethernet 11. Self-looping at local end (DIG), and Ethernet being ordered to self-loop at remote end (REM);
12. Has the function of pseudo-random code testing, convenient for opening of the circuit, and can be used as an error code instrument;
13. Supports 75Ω/unbalanced and 120Ω/balanced impedance at the same time;
14. Network management interface uses SNMP;
15. Can compose Ethernet net bridge (A)—E1 Modem (B)—Ethernet fiber Modern (C) topology structure;
16. Can compose Ethernet net bridge (A)—Ethernet transmission device(B)—Media converter (C) topology structure.
Specification:
|
E1 Interface |
Interface Standard: comply with protocol G.703; E1 Impedance: 75Ω (unbalance), 120Ω (balance); Jitter tolerance: In accord with protocol G.742 and G.823 Allowed Attenuation: 0~6dBm
|
|
Ethernet interface (10/100M)
|
Interface rate: 10/100 M bps, half/full duplex auto-negotiation Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) MAC Address Capability: 4096 Connector: RJ45, support Auto-MDIX
|
|
Power |
Power supply: AC180V ~ 260V;DC –48V;DC +24V Power consumption: ≤3W
|
|
Dimension |
Mini Type: 216(width)X140(depth)X31(height)mm 19 inch 1U: 483(width)X138(depth)X44(height)mm
|
|
Working environment |
Working temperature: -10°C ~ 50°C
Storage temperature: -40°C ~ 80°C
|
