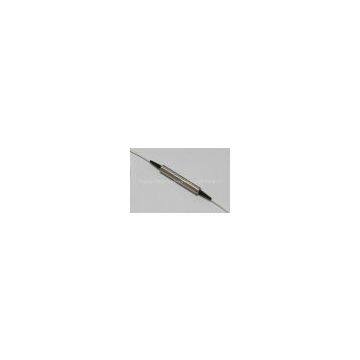

1480/1550nm WDM-Isolator Hybrid Combination
All Flyin Optronics' products are Telcordia qualification tested.
Features:
l Wide Operating Wavelength Range
l Low Insertion Loss
l High Channel Isolation
l Ultra Low PDL&PMD
l High Stability and Reliability
l Epoxy Free Optical Path
Applications:
l Fiber optic Amplifiers
l CATV Fiber optic Links
l WDM Systems
l Fiber optic Instruments
l Transmitters and Fiber Lasers
l Laboratory R&D
Performance Specifications
|
Parameter |
Single Stage |
Dual Stage |
|
Signal Operation Wavelength Range (nm) |
1530~1565 |
|
|
Pump Channel Wavelength Range (nm) |
1450~1490 |
|
|
Isolation (dB) (Over signal wavelength range @23℃, all SOP) |
≥30 |
≥42 |
|
Wavelength Isolation (dB) (3 to1 @ λsignal) |
≥15 |
|
|
Wavelength Isolation (dB) (1 to 2 or 2 to 1 @λ pump) |
≥25 |
|
|
Insertion Loss |
Pump Channel |
≤0.6 |
|
Signal Channel |
≤0.8 |
≤1.0 |
|
Temperature Dependent Loss(dB) |
≤0.25 |
≤0.3 |
|
Wavelength Dependent Loss(dB) |
≤0.4 |
≤0.5 |
|
Return Loss (dB) |
>50 |
|
|
Derectivity (dB) |
>50 |
|
|
PDL (dB) |
≤0.1 |
≤0.2 |
|
PMD (ps) (Low PMD Option) |
≤0.25(0.05) |
≤0.05 |
|
Power Handling (mW) |
500 |
|
|
Operating Temperature (℃) |
-15 ~ +75 |
|
|
Storage Temperature (℃) |
-40 ~ +85 |
|
|
Dimension (mm) |
Φ5.5 x L38 |
|
|
Fiber Type |
Corning SMF-28e Fiber |
Data are referenced without connector loss;
Specifications may change without notice.
Ordering Information
|
WDIH |
XX |
X |
X |
X |
X |
XX |
|
|
Wavelength |
Stage |
Configuration |
Pigtail Type |
Fiber Length |
In/out Connector |
|
54=1550nm pass/1480nm reflect |
S=Single Stage D=Dual Stage |
F=Forward Pump B=Backward Pump |
1=Bare Fiber 2=900um Loose Tube |
1=1m 2=2m |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC |
