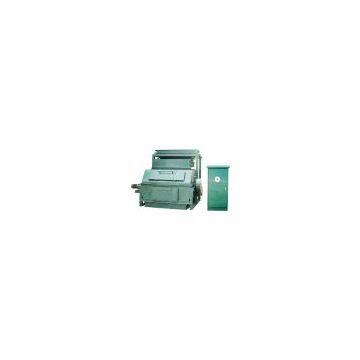

ISO Certificate Mineral Dry Magnetic Separator With High Reputation
1.Introduction of dry magnetic separator:
Permanent Magnet Drum Separator Dry is a highly efficient magnetic separation equipment which is developed successfully by our company. Magnetic system is made by all high-performance rare earth neodymium ferrite materials and high-quality materials, by a design of cleverly open magnetic circuit, maximum magnetic induction strength of cylinder sub electoral reachs 0.8T above, the magnetic field strength is 3 -5 times of conventional machine, sub-constituency of electromagnetic field strength can reach the level of intensity magnetic separator.
2.Features of dry magnetic separator:
1.Big processing capacity
2.Wide range of separating mineral size
3.High precision of separation, and non-blocking
4.Simple structure, easy maintenance
5.Strong electro power consumption is only 20% of magnetic separator.
3.Technical parameters of dry magnetic separators:
|
Type |
GYC-60B |
GYC-60B-1 |
GYXY-2*60 |
GYC-3*60 |
GYC-3*80 |
GYC-4*80 |
|
Cylinder dia*length(mm) |
320*600 |
320*600 |
320*600 |
320*600 |
404*800 |
404*800 |
|
Magnetic induction(oe) |
3600 |
1100 |
3500 |
1100-3000-35000 |
1100-3000-3500 |
1100-3000-3500 |
|
Cylinder quantity(per) |
1 |
1 |
2 |
3 |
3 |
4 |
|
Cylinder speed(r/min) |
66,47,33 |
66,47,33 |
66,47,33 |
34.5-172 Adjustable |
54.6-172 Adjustable |
64.5-172 Adjustable |
|
Input size(mm) |
0.06-25 |
0.063-25 |
0.05-25 |
0-8 |
0-8 |
0-8 |
|
Motor model |
Y801-4 |
Y901-4 |
Y801-4 |
ZBW-15 |
ZBW-15 |
ZBW-15 |
|
Power(kw) |
0.75 |
0.75 |
0.75 |
1.1 |
1.5 |
2.2 |
|
Overall diamension(mm) |
860*550*840 |
860*550*840 |
1150*920*1500 |
1050*1025*1700 |
1770*1260*2400 |
2300*1000*2750 |
|
Capacity(t/h) |
0.5-2.5 |
0.1-3 |
0.5-2.5 |
0.8-2.5 |
1.5-2.5 |
1.5-2.5 |
|
Weight(t) |
0.5 |
0.65 |
0.5 |
1.2 |
1.5 |
2.4 |
|
Applecation scope and introduction |
Select |
select |
select |
With vibration feeder |
With vibrating feeder |
select |
4.Service promise:
Before sale: Guide customers to choose the most suitable type of equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the site.
On sale: Inspect the product seriously before out of the factory; invite customer for commissioning in the spot and raising the objection; organize to delivery according to the contract.
After sale: Company can send technical persons for guiding to install debug and train the workers.
