920 L-R 250 KN EMM 23-25 C-frame Inclinable mechanical Power Presses machine 1. 25ton power press
2. automatic power press
3. mechanical power press

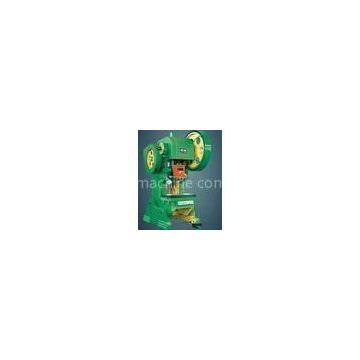

EMM23-25 C-frame Inclinable Power Press
I. Features:This series of button presses using rigid transfer clutch, simple structure, easy maintenance, the use of helical gears, smooth, the impact of small, low noise.
Championship glory, different.
Supreme heavyweight champion from the second forging press technology standards. There is of life. Fifty years of manufacturing history, exercise an undisputed champion of stamping.
EMM23-25 open type inclinable press machine is the fiest to adopt rolling bearing than the commonly used sliding bearing (copper bearing ) for the transmission gear, which make the transmission gear more wear-resistant and avoid loud noises of gears caused by the quick worn copper bearing.
II . Technical Data:
|
Item |
Unit |
EMM 23-25 |
|
|
Nominal pressure on sliding block(Pe) |
KN |
250 |
|
|
Nominal pressure stroke(Sp) |
mm |
2.5 |
|
|
Slide stroke(S) |
mm |
65 |
|
|
Stroke frequency |
Fast speed |
times/ |
|
|
Low speed |
55 |
||
|
Die height(H2) |
mm |
270 |
|
|
Die Height Adjustment(t) |
mm |
55 |
|
|
Distance between slider center and machine(C1) |
mm |
200 |
|
|
Vertical columns distance(d1) |
mm |
270 |
|
|
Slider bottom size |
L×R(a) |
mm |
250 |
|
F×B(b) |
mm |
220 |
|
|
Size of handle hole |
Diameter(d) |
mm |
40 |
|
Depth(I) |
mm |
60 |
|
|
Size of worktable |
L×R(C) |
mm |
560 |
|
F×B(D) |
mm |
370 |
|
|
Blanking hole diameter(Φ) |
mm |
120 |
|
|
Thickness of worktable(H3) |
mm |
50 |
|
|
Max. inclination angle |
Deg |
30 |
|
|
Worktable height(H1) |
mm |
800 |
|
|
