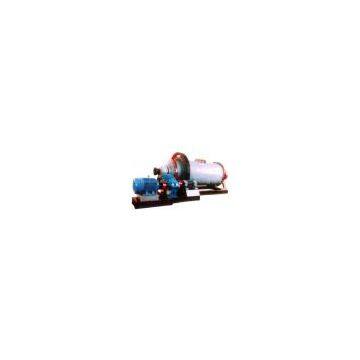

Continuous ball mill, mill manufacturer, ball mill, industrial grinding equipment
- 100 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
- Gold mining jaw crusher equipment for sale, stone crusher machine
- First-rate high efficiency SZZ series self-centering vibrating screen with ISO 9001 Certificate
- China leader manufacturer ZHAOXIN high efficiency thickener
- Ore benefication thickener machine, dewatering thickener price
- china high quality center drive thickener, thickening equipment
- Shandong Province high efficiency center drive thickener NZ-12, thickening machine
Product Details
Brand Name: | Huabang | Place of Origin: | China | Model Number: | 1500*3000 |
Product Description
Application:
Continuous ball mill machine is the material to be broken, and then to smash the key equipment, ball mill is widely used in industrial production of high-fine grinding machine, applicable grinding all kinds of ores and other material. It is widely used for ore dressing, building materials, chemical and other industries. And it can be divided into two kinds of dry and wet grinding methods. According to different ways of discharge can be divided into two kinds of lattice type and Overflow.
Features:
1. Strong adaptability
2. Continuous production
3. Large crushing ratio
4. Easy to adjust the size of the products
5. Higher capacity
6. More convenient operation
7. Saferusage
8. More reliable performance
Structure:
Continuous Ball Mill consists of charging part, discharging part, rotary part, transmission part (velocity decreasing machine, small conveying gear, motor, electric control) and so on. The shaft is made of casting steel and the inner liner palate can be replaceable. The big rotary gear is processed by cast roll tooth. There is wear- resistant liner palates welded on the inner wall of the drum so that it has good wear proof ability.
The mills with the diameter above 3m allocate jaking devices for easy maintenance. So the dynamical pressure bearing and the static pressure bearing can operate stable. The low speed transmission is convenient for maintenance and starting. And the oil mist spray lubrication device ensures the reliable lubricating of big and small gears. Generally, the main motor of the large mill is high pressure asynchronous motor or synchronous motor. So customers should indicate the motor type in order.
Detail Technical Parameters of Our Continuous Ball Mill are in our Website
Technical parameters:
Model |
Drum rotary speed(r/min) |
Feeding capacity(t) |
Feeding size(mm) |
Discharging size (mm) |
Capacity (t/h) |
Power (KW) |
Weight (t) |
Φ900×2100 |
38 |
1.5 |
≤15 |
0.075-0.89 |
0.5-2 |
15 |
3.9 |
Φ900×2400 |
38 |
1.8 |
≤15 |
0.075-0.89 |
0.7-2.8 |
18.5 |
4.5 |
Φ900×3000 |
38 |
2.51 |
≤15 |
0.075-0.89 |
0.8-3.5 |
22 |
5.0 |
Φ1200×2400 |
32 |
3.8 |
≤20 |
0.074-0.4 |
0.9-4.8 |
30 |
9.2 |
Φ1200×2800 |
32 |
4.0 |
≤20 |
0.074-0.4 |
1.0-5.0 |
30 |
9.5 |
Φ1200×3000 |
32 |
4.5 |
≤20 |
0.074-0.4 |
1.2-5.6 |
37 |
11.5 |
Φ1200×4500 |
30 |
5.5 |
≤20 |
0.074-0.4 |
1.5-6.0 |
55 |
13.6 |
Φ1500×3000 |
27 |
7.0 |
≤25 |
0.074-0.4 |
2.5-6.5 |
75 |
15.0 |
