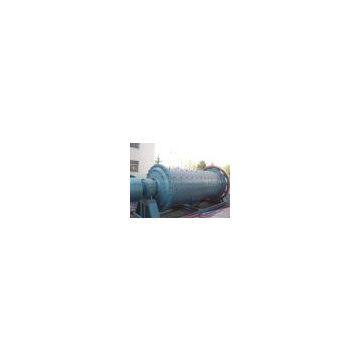

Wet ball mill is a mineral processing machine for milling the materials into powders after they are crushed. It is widely applied to the production of cements, silicate products, building materials, fireproof materials, fertilizers, glass, ceramics as well as nonferrous and ferrous metal processing industries. It could carry out dry and wet millings on different materials.
Usage in Mineral Processing:
Minerals are firstly crushed by jaw crusher until they are crushed to suitable sizes. They are then equally fed to a ball mill with a hoister and a feeder. Later, they are further crushed and milled in the ball mill. Finally, fine minerals are classified by a spiral classifier with the principle that solid particles sink at different speeds in liquid.
Usage in Aerocrete Equipment:
Coal ash (or sand, stone powder) are conveyed to ball mill through electric vibrating feeder and rubber belt conveyor. Grinded coal ash (or sand, stone powder) is delivered to slurry tank for storage through a coal ash pump.
Lime is conveyed to jaw crusher by electric vibrating feeder and rubber belt conveyor. The crushed lime firstly is stored in a limestone storage silo with a bucket hoister. Then, it is conveyed to ball mill through a spiral conveyor. Finally, fine grinded materials are delivered to stock bin through a spiral conveyor and a bucket lifter.
Ways of Improving Productivity:
In addition to manufacturing ball mill, we also carry our research on improving its productivity. Generally speaking, the productivity of ball mil can be improved by
1. Adding fine crusher before the ball mill.
2. Improving grinding system to achieve better grinding efficiency.
3. Adding powder concentrator.
Working Principle:
Wet ball mill is of horizontal, cylindrical and tubular structure. It comes with two cabins and is a grate ball mill. The materials are evenly fed through the charging device to first warehouse where there are step scales boards, corrugated scale boards and different specifications of steel balls. When the cylinder rotates, the centrifugal force produced causes the steel balls to impact and grind the materials in the ball mill. The materials are then lead to the second cabin for further milling until they turn into powders and are discharged from the outlet.
Detail Technical Parameters of Our Wet Ball Mill are in our Website
Technical specification of Chinaware Ball Mill
|
Φ910×1120 |
Φ1200×1400 |
Φ1500×1800 |
Φ1800×2100 |
Φ2100×2100 |
Φ2200×2400 |
Φ2500×2900 |
Φ2800×3700 |
Φ3000×3700 |
|
|
Capacity(t/batch) |
0.2 |
0.5 |
1 |
1.5 |
2.5 |
3 |
5 |
8 |
10 |
|
Cylinder speed(r/min) |
36 |
32 |
28 |
26 |
22 |
20 |
16 |
14.5 |
14 |
|
Motor power(KW) |
5.5-11 |
11-18.5 |
15-22 |
18.5-30 |
22-37 |
28-45 |
37-55 |
55-75 |
75-90 |
|
Weight(t) |
2.6 |
4.3 |
6.5 |
8.8 |
13 |
15 |
19 |
26 |
32 |
