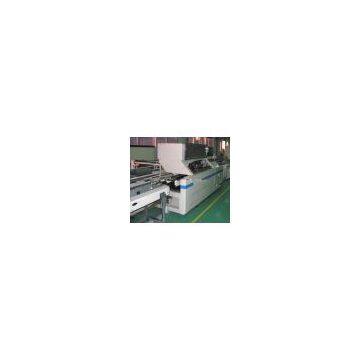

HITACHI TCM-1100 SMT Part

Smtsky Asia Limited
HITACHI TCM-1100 SMT Part thumbnail-1
HITACHI TCM-1100 SMT Part photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Total Employees:
101 - 200 People
Main Markets:
North America, South America, Eastern Europe
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Cassette
2. Set the printing unit to the maintenance jig.
. The printing unit should be set so that the cassette will face upward.
3. Loosen both the screws mounting the cassette holder, and tilt the plates outward.
Name
c
Cassette holder
d
Plate
1E4C-428P

4. Open the cassette holder by turning it 180°, and remove it together with the holder from the printing unit.
. Take care not to open the cassette holder while solder remains in the cassette, or it will be pulled out.
1E4C-429P
1E3C-E-MMB01-A02-00 Page 1-41
1.4 Every-140-Hour Check (Once a Week)
1E4C-452P
1E4C-434P
5. Attach the cover for maintenance (for storing the unit) to the printing unit.
. Attach it under the printing unit sliding it sideways.
Name

c
Cover
d
Plate
6
Unscrew both the screws mounting the plate, and detach it.
7
Remove the ring.
8
Using the cleaning jig, collect the solder in the unit.

.
Avoid using a metallic spatula. Otherwise, it may damage the printing unit.
.
Dispose of the solder collected in cleaning.
To the next page
Page 1-42 1E3C-E-MMB01-A02-00 1.4 Every-140-Hour Check (Once a Week)
9. Detach the block in the printing unit upward, and, using the cleaning jig, collect the solder adhered to the block and that remaining in the unit.
. Avoid using a metallic spatula. Otherwise, it may damage the printing unit.
Name
cBlock

1E4C-435P
10. Turn the printing unit upside down, set it to the maintenance jig, and remove the cover for storage.
Name
c
Blade
d
Side rubber
1E4C-437P
To the next page
1E3C-E-MMB01-A02-00 Page 1-43

1.4 Every-140-Hour Check (Once a Week)
12. Clean each of parts, using solvent (IPA, ethanol, etc.).
. In order to prevent the blades from bending, they should be wiped always in one direction.
13. Assemble the cleaned parts.
.
Assembly is the reverse of disassembly.
.
For information about attaching the printing unit to SP main body. (
Cartridge Head Manual)
.

In using a new cassette, be sure to peel off its seal after set.
.
The blade should be set being pressed its end face against the contact face of the frame. (
3.2.2 Replacing the Blades)
. After cleaning, before staring the next production, be sure to fill solder into the printing unit. (
Cartridge Head Manual) If printing is performed with enough solder not filled in the printing unit, that can cause damage to the mask and blade or an improper printing.
Page 1-44 1E3C-E-MMB01-A02-00 1.5 Every-560-Hour Check (Once a Month)
1.5 Every-560-Hour Check (Once a Month)
1.5.1 Checking the Board Transport Belts
Check the board transport belts located on the board-positioning lift and the transport conveyor (both sides) for anomalies.

1. Checking for flaws in the belt.
1. Turn OFF the power and stop the air supply.
. Lock the power supply switch and the main air valve.
1D3C-040E
2. At the end of each conveyor, visually check the belts while hand-turning them.
. As a result of check, in the case where replacement is necessary (
1.9.1 Replacing the Board Transport Belts and Rollers)
1E3C-E-MMB01-A02-00 Page 1-45 1.5 Every-560-Hour Check (Once a Month)

2. Checking the belt tension

A) Measurement position Take a measurement at the midsection of the span.
