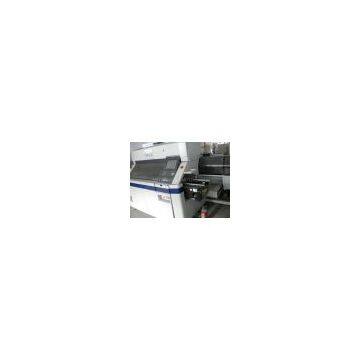

HITACHI TCM-X110 SMT Part

Smtsky Asia Limited
HITACHI TCM-X110 SMT Part thumbnail-1
HITACHI TCM-X110 SMT Part photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Total Employees:
101 - 200 People
Main Markets:
North America, South America, Eastern Europe
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
1D3C-181CC0
B) Measuring method Take a measurement to check that the sag (δ) e of the belt is correct, by pressing it at the specified pressing load (F) c with the push-pull gauge d.


1

2
3
443C-327E

Pressing load and sag
Board conveyor left
Board conveyor right

Pressing load F 1.96 1.96
( N )

Sag δ
4 ± 0.5
2.5 ± 0.5
( mm )

. Adjusting the tension
As a result of the check, if the belt tension is not proper, adjust it seeing the next page.

Page 1-46 1E3C-E-MMB01-A02-00 1.5 Every-560-Hour Check (Once a Month)
3. Adjusting the belt tension

1
Loosen the four bolts mounting the motor bracket.
2
Adjust the tension by moving the motor bracket up and down, and then tighten the bolts.
1D3C-414P
1E3C-E-MMB01-A02-00 Page 1-47
1.5 Every-560-Hour Check (Once a Month)
1.5.2 Cleaning and Lubricating the XY Table (Ball Screws)
This unit moves boards to the recognition position and the print position. Following the steps, perform cleaning and lubrication.
Tools Allen wrench 4 mm Time required 15 minutes

1. Turn OFF the power and stop the air supply.
. Lock the power supply switch and the main air valve.
1D3C-040E
2
Open the front safety cover.
3
Open the center safety cover, and pull out the cleaning unit.
Name
c
Center safety cover

d
Cleaning unit
2 1
1D3C-418P
4. Remove the cover.
. Unbolt the four hexagon head bolts, and 1 remove the cover by sliding it to the front side.
Name
cCover
1D3C-435E
To the next page

Page 1-48 1E3C-E-MMB01-A02-00
1.5 Every-560-Hour Check (Once a Month)
5. Clean and lubricate the ball screws.
2 Name
c
X-axis ball screw
d
Y-axis ball screw
1. X-axis ball screw Lubricate it from the batch-lubrication nipple.
1D3C-436E

1
1
1D3C-422P
Name
cX-axis ball screw grease nipple
2. Y-axis ball screw Lubricate it from the batch-lubrication nipple.
1
1D3C-422P
Name
cY-axis ball screw grease nipple

6. After lubrication is complete, attach the cover that was removed at step 4.
1E3C-E-MMB01-A02-00 Page 1-49
1.5 Every-560-Hour Check (Once a Month)
1.5.3 Checking the Squeegee-Raising Air Pressure
Tools
1
1D3C-061P
1D3C-AB
2
3

Time required
1 minute
1. Check the supply air pressure c.
.
Air pressure is 0.2 MPa.
