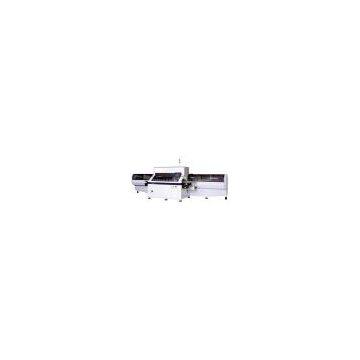

HITACHI TCM-3000 SMT Part

Smtsky Asia Limited
HITACHI TCM-3000 SMT Part thumbnail-1
HITACHI TCM-3000 SMT Part photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Total Employees:
101 - 200 People
Main Markets:
North America, South America, Eastern Europe
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
SERVO
OFF ( ) ON (
) 5. Turn ON the servo switch.
Page 1-32 1E3C-E-MMB01-A02-00 1.3 Every-24-Hour Check (Daily)
1.3.6 Checking the Blades and Side Rubbersfor Wear andDamage(Before Operation)
Before starting production, check the blades and side rubbers of the cartridge head (option) for wear and damage.
1
Set the printing unit to the maintenance jig.
2
Slide and detach the cover for storage. Name

cCover for storage
3. Visually check the blades and side rubbers for wear and damage.
. If wear or damage is found, replace the blades and side rubbers. (
3.2.2 Replacing the Blades) (
3.2.3 Replacing the Side Rubbers)
Name
c
Side rubber
d
Blade

1E4C-438P
Page 1-33
1E3C-E-MMB01-A02-00
1.3 Every-24-Hour Check (Daily)
1.3.7 Cleaning the Blades (After Operation)
After operation, if solder is left outside of the blades of the cartridge head (option), clean them. Leaving solder on this part can harden it, and may potentially result in improper printing at the next production.
1. Detach the printing unit.
(
Cartridge Head Manual)
2

Set the printing unit to the maintenance jig.
3
Check that solder is not left outside of the blades. If it is, scrape away the adhering solder using a plastic spatula.
. Avoid using a metallic spatula. Otherwise, it may damage the blades.
1E4C-414P
Page 1-34 1E3C-E-MMB01-A02-00 1.4 Every-140-Hour Check (Once a Week)
Clean the suction section.
1D3C-040E
1D3C-418P
1D3C-419P

To the next page
1.4 Every-140-Hour Check (Once a Week)
1.4.1 Cleaning the Mask-cleaning Suction Section
1. Turn OFF the power and stop the air supply.
. Lock the power supply switch and the main air valve.
2
Open the front safety cover.
3
Open the center safety cover, and pull out the cleaning unit.
Name

cCleaning unit
4. Remove the take-up paper tube (upper).
.
Move the tube to the removing lever. After ensuring that it separates from the hinge projection, pull it out.
.
Place the removed tube on the location where will not hinder work.
. Move it to the right until it separates from the hinge projection c.
Name
cHinge projection
1D3C-420P

1E3C-E-MMB01-A02-00 Page 1-35 1.4 Every-140-Hour Check (Once a Week)
1D3C-434E
1D3C-419P
5. Detach the nozzle.
. Unbolt the ten hexagon head bolts from the nozzle section, and detach the nozzle from 1 the suction section. (See the left figure.)
Name
cNozzle
6. Clean the nozzle.
.
Wipe off adherents using cloths dampened with IPA or ethanol. Or, wash it.

.
After cleaning, dry it well before attaching.
7
Attach the cleaned nozzle.
8
Set the paper tube.
.
Reversing the step 4, set the paper tube into the unit.
.
Insert the tube into the hinge projection of the cleaning unit.

9
Return the cleaning unit into the main body.
10
Close the front and the center safety cover.
Page 1-36 1E3C-E-MMB01-A02-00 1.4 Every-140-Hour Check (Once a Week)
1.4.2 Checking the Solvent-Dispensing Nozzle for Clogging
During mask cleaning, the solvent-dispensing nozzle may be clogged with fiber of the cleaning paper. Check the solvent-dispensing nozzle for clogging.
NOTICE This maintenance is carried out with the power supply switch ON. In performing a work inside the moving part, be sure to open the safety cover. (Opening the cover interrupts the power supply to the moving-part motor.)
SERVO
) ON (

Send Inquiry to This Supplier

Message
0/5000
Want the best price? Post an RFQ now!
Smtsky Asia Limited
Business Type
Trading Company
Total Employees
101 - 200 People
Main Markets
North America, South America, Eastern Europe
Location
Baoji, Shaanxi, China
