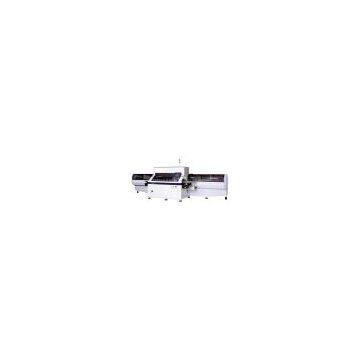

HITACHI TCM-60 SMT Part

Smtsky Asia Limited
HITACHI TCM-60 SMT Part thumbnail-1
HITACHI TCM-60 SMT Part photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Total Employees:
101 - 200 People
Main Markets:
North America, South America, Eastern Europe
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
1D3C-X039E
1D3C-045E

Page 1-25 1.3 Every-24-Hour Check (Daily)
1.3.3 Cleaning the Squeegee Holder (After Operation)
After operation, clean the squeegee holder. Leaving contamination on this part can cause deformation or deterioration of squeegee rubbers, and eventually may interfere with proper applying operation.
NOTICE This maintenance is carried out with the power supply switch ON. In performing a work inside the moving part, be sure to open the safety cover. (Opening the cover interrupts the power supply to the moving-part motor.)
1. Press
in the main menu.
. The <Machine adjustment menu> screen is displayed.
UNLOCK
2. Press
+ [Squeegee open/close].

. The <Squeegee open/close> screen is displayed.
. This step uses the screen of SP80V for description.
UNLOCK
3. Press
+ [Squeegee open (Squeegee exchange)].
. The squeegees open.
To the next page
Page 1-26
1E3C-E-MMB01-A02-00
1.3 Every-24-Hour Check (Daily)

SERVO OFF ( ) ON ( )
1
2
3
1D3C-X039HA
1D3C-150VC0
4
Turn OFF the servo switch.
5
Open the front safety cover.

6
Remove the squeegees from the squeegee head.
. Loosen the screws.
Name
c
Squeegee head
d
Screw
e
Squeegee

7. Clean the squeegees.
. Scrape away the solder adhering to the squeegees using the squeegee cleaning jig or a plastic spatula, then wipe off the remaining solder using IPA or ethanol.
1
1E4C-410P
Name
cSqueegee cleaning jig
8
Set squeegees.
9
Close the front safety cover.

To the next page
1E3C-E-MMB01-A02-00 Page 1-27 1.3 Every-24-Hour Check (Daily)
SERVO
10. Turn ON the servo switch.
) ON (
)
OFF (
UNLOCK
11. Press
+ [SQ. close].

. The squeegee head closes.
. After the completion, pressing
 returns
the screen to the <Machine adjustment
menu> screen.
Page 1-28 1E3C-E-MMB01-A02-00 1.3 Every-24-Hour Check (Daily)
1.3.4 Cleaning the Board-Positioning Lift (After Operation)
After operation, clean the support plate, clamping claws, and recognition hole of board-positioning unit.
Tools Recognition-hole cleaning jig Time required 3 to 4 minutes
NOTICE

This maintenance is carried out with the power supply switch ON. In performing a
work inside the moving part, be sure to open the safety cover.
(Opening the cover interrupts the power supply to the moving-part motor.)
32
1D3C-453E
Name 1
c
Support plate
d
Clamping claw
