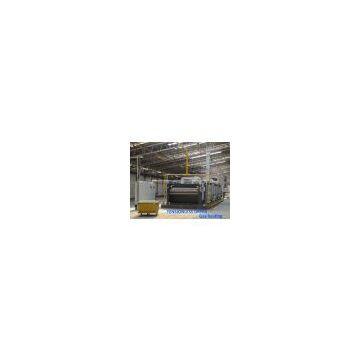

Tensionless Dryer for Open Width or Tubular Fabric Continuous Drying

TTH achieves a high production capacity with a low utility consumption.It features a professional designed blower, air ducts and nozzles.This perfect combination enables the fabric to form in wave pattern and continues tumbling between the up and down conveyor in a fully relax condition throughout the whole drying process.Fabric after the TTH drying process gives a perfect hand feel and achieves a good shrinkage effect.

Special Feature:

Fabric entry height only 1.3M, very easy operation

Up and down conveyor belt design facilitate the fabric tumbling in wave form, more relaxing and tension free.

Extremely low chamber with 16sets nozzles(normal dryer only 14sets nozzle), greatly increase the efficient drying area.

All service doors and heat resistant panels are 15cm thickness

Drawer design filter, easy for cleaning

Throttle type air flow adjustable device, individual air flow adjustment for up and down nozzle in each chamber.

Touch screen color monitor controller

Sub-control box at the back side of machine for easy operation.

Optional:

Pin-frame section Entry for TTH.

There is too much longitudinal tension during the wet processing such as scouring, bleaching, dyeing , squeezing, slitting, etc.It can greatly affect the shrinkage of the finished product,.Besides the tension, a lot of chance to cause winkle,crease mark, folding mark during dyeing, hydro extraction, loading and unloading procedure.All the mentioned problems may not be completely solved even after stentering and campaction. The pin-frame section can perform an important purpose to adjust the weft to right direction, stretch the width for compensate the tension during the wet processing,remove most of the wrinkle and marking problem, and apply sufficient overfeeding before the drying process.Improve the shrinkage result for final product.
