Home > Health & Medicine > Medical Supply > Disposable Medical Supplies > Solid Copper RG213 Coaxial Cable, 50 Ohms Cable With PVC Jacket For Date Transmission

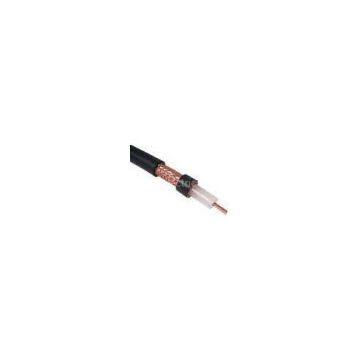

Solid Copper RG213 Coaxial Cable, 50 Ohms Cable With PVC Jacket For Date Transmission

Name: Solid Copper RG213 Coaxial Cable, 50 Ohms Cable With PVC Jacket For Date Transmission
Brand: Libo
SKU: 147854884
Availability: InStock

Solid Copper RG213 Coaxial Cable, 50 Ohms Cable With PVC Jacket For Date Transmission thumbnail-1

Solid Copper RG213 Coaxial Cable, 50 Ohms Cable With PVC Jacket For Date Transmission photo-1

Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Libo

Place of Origin:

China

Model Number:

RG213/U coaxial cable

Contact Supplier Request Quote Chat Now

Shaoxing Libo Electric Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Libo

Place of Origin China

Model Number RG213/U coaxial cable

Delivery Time:Within 2 weeks
Certification:CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati

Solid Copper RG213 Coaxial Cable, 50 Ohms Cable With PVC Jacket For Date Transmission

RG213/U, solid copper stranded wire as inner conductor, Dielectric core is insulating grade virgin polyethylene, bare copper wire for braiding material, and PVC jacket.

Applications

In applications that demand both low attenuation and high operating voltage

Date transmission RFID GPS Test and measurement Wire less infrastructure

Specifications:

Cable Specification

construction	Testing item	Unit	Standard
Inner conductor	material	-	13AWG solid copper 7*21 stranded
diameter	mm	2.261mm0.01mm(0.089 inches)
Dielectric	material	-	Solid PE
diameter	mm	7.239mm0.13mm(0.285 inches)
shield, Braid	Material	-	Bare copper wire
Diameter	mm	0.16
Ends	EA	8
Carrier	EA	24
Pitch	mm	32
Electrical properties	Coverage	%	96%
jacket	PVC	mm	10.2870.13mm(0.405 inches)
Nominal velocity of propagation	%	66%
Capacitance	pF/M	100
Characteristic impedance(10MZ)	Ω	50 ohms3 ohms
SRL	dB	20
Attenuation 20℃(max)	50MHZ	dB/100m	4.26
100MHZ	6.22
200MHZ	8.84
400MHZ	13.53
700MHZ	21.2+
900MHZ	24.89
1000MHZ	26.20

Competitive Advantage:

RG 213 has outstanding structural return loss and it with remarkable impedance stability and excellent performance on attenuation. Libo cable was established in 1994, it covers over 340,000 square meters on our operating area. Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly fo
