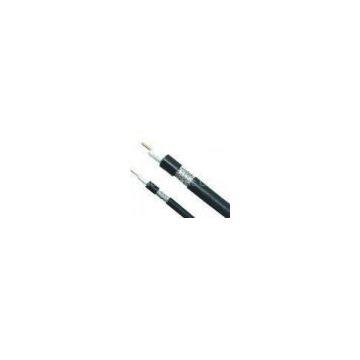

Braided 8D-FB Coaxial Cable, 50 ohms Cable with PVC Outer Jacket for GSM, 3G, CDMA System
8D-FB coaxial cable, bare copper as inner conductor, Dielectric core is insulating grade virgin polyethylene, AL foil+ tinned
copper wire as shield, PVC or PE for outer jacket.
Applications
8D-FB coaxial cable is used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system, and aeronautics and space industry, precise instrument.
Specifications:
|
construction |
Testing item |
Unit |
Standard |
|
Inner conductor |
material |
- |
Bare Copper |
|
diameter |
mm |
2.800.01 |
|
|
Dielectric |
material |
- |
foamed PE |
|
diameter |
mm |
7.8mm |
|
|
1st shield, tape |
material |
- |
BAPA |
|
2nd shield, braid |
material |
- |
Tinned copper wire |
|
Electrical properties |
coverage |
% |
85% |
|
jacket |
PVC |
mm |
11.100.2mm |
|
Nominal velocity of propagation |
% |
83% |
|
|
Capacitance |
pF/M |
84 |
|
|
Characteristic impedance |
Ω |
50 3 |
|
|
V.S.W.R |
1.25 |
||
|
Attenuation 20℃(max) |
150MHZ |
dB/100m |
5.20 |
|
200MHZ |
6.10 |
||
|
280MHZ |
7.30 |
||
|
350MHZ |
8.20 |
||
|
400MHZ |
8.60 |
||
|
800MHZ |
12.30 |
||
|
900 MHZ |
13.00 |
||
|
1200 MHZ |
16.50 |
||
|
1500 MHZ |
18.70 |
||
|
1900 MHZ |
21.70 |
||
|
2000 MHZ |
22.50 |
||
|
2400 MHZ |
24.80 |
||
|
3000 MHZ |
28.40 |
Competitive Advantage:
