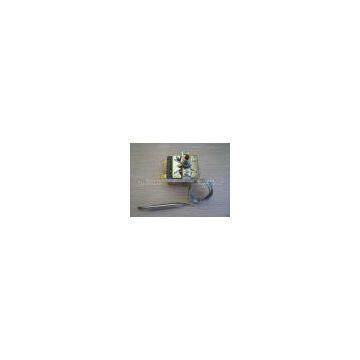

UL, CE Approved Capillary Water Heater Thermostat

Name: UL, CE Approved Capillary Water Heater Thermostat
Brand: Thermal International
SKU: 147850982
Availability: InStock

Thermal International CO.,LTD

Negotiable MOQ: 5000 Kilograms (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Thermal International

Place of Origin:

China

Model Number:

WKB-S

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name Thermal International

Place of Origin China

Model Number WKB-S

UL, CE Approved Capillary Water Heater Thermostat Details

Place of Origin	Guangdong, China (Mainland)
Brand Name	Thermal International
Model Number	WKB
Type	Heating
Place of Origin	Guangdong Province, China
Certifications	UL,CE,RoHS,CQC,ISO9001
Function	Adjustable Thermostat
Theory	Temperature Controller
Temperature Range	-35 degree-320 degree
Temperature Tolerance	2 -- 12 degree Celsius
Electric Rating	250VAC 16A
Wiring Form	SPST & SPDT optional
Terminal Position	180 degree(Horizontal); 45 degree; 90 degree
Life	more than 100,000 cycles

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Piece/Pieces Negotiable for less than MOQ
Port:	Guangzhou, China
Packaging Details:	Standard: 200 pieces of Thermostat per carton box (44.5cm38.5cm26cm; G.W. 19KG) Nonstandard: available
Delivery Time:	Within 20-30 days after deposits received
Payment Terms:	L/C,D/A,D/P,T/T, Western Union, MoneyGram
Supply Ability:	200000 Piece/Pieces per Month

Detailed Product Description

Capillary Type Thermostat
-35 deg C--+320 deg C
250VAC 16A
Life:100,000 cycles
UL, RoHS, CE,CQC,ISO approved Thermostat

----------------------------------------------

Thermal Protection Capillary Type Thermostat CE Approved

WKB Thermostat is one of the most universal thermostats applied to

electrical appliances, which can be replaced to most thermostats from various brands, and maintains satisfying performance.

----------------------------------------------

Features of Capillary Type Thermostat

Temperature Range of Thermostat	-35~320°C(-31~608°F)
Action Temperature of Thermostat	Available on requests from customers
Electric Rating of Thermostat	AC 400V 10A~250V 16A
Working Life of Thermostat	100,000 cycles
Contact	SPST & SPDT optional
Accessories	Adjustment knob, bezel and mounting screws can be supplied completely

----------------------------------------------

Specifications of Capillary Type Thermostat

	Sensing Bulb	Capillary
Specification	Dia.: Φ3,Φ4,Φ5,Φ6	Standard: 1000mm (300~3000mm optional)
Material	Copper, Stainless Steel	Copper, Stainless Steel
Specifications are available on customers' requests

----------------------------------------------

Applications of Capillary Type Thermostat

----------------------------------------------

Notes for Capillary Type Thermostat

Adjusting/Rotating shaft is available on several lengths
Adjustment knob and rotating shaft is available on various requirement of angle
The action temperature and differential can vary according to the applications
Contact is available on a series of specifications
Specifications of sensing bulb and capillary are available on different requests from customers
Stuffing glands/stuffer bushing/fitting&nut for sealing shall be ordered by description.
