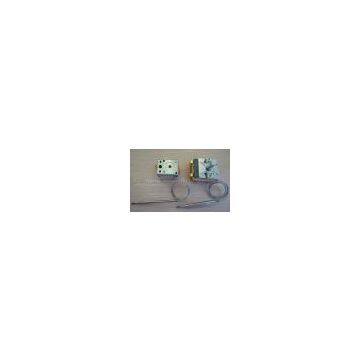

Electric Oven Capillary Thermostat with UL, CE Certificate Details
|
Type |
Electric Deep Fryer Parts |
|
Place of Origin |
Guangdong, China (Mainland) |
|
Brand Name |
Thermal International |
|
Model Number |
WKB |
|
Certificate |
UL,CE,RoHS,CQC,ISO9001 |
|
Temperature Range |
30 to 185 degree Celsius |
|
Temperature Differential |
5% of action temperature |
|
Electric Rating |
16(3)A-250V~10(1.8)A-400V |
|
Wiring Diagram |
SPST and SPDT optional |
|
Reset Type |
Auto-reset |
|
Material of Capillary and Sensing Bulb |
Stainless Steel |
|
Temperature's Rate of Change |
1°C/min |
|
Life |
100,000 cycles |
|
Application |
Deep Fryer |
Payment & Shipping Terms:
|
Minimum Order Quantity: |
1000 Piece/Pieces Negotiable for less than MOQ |
|
Port: |
Guangzhou, China |
|
Packaging Details: |
Standard: Carton Boxes. 100 pieces/small carton (37cm*21cm*23cm); 200 pieces/large carton (44.5cm*38.5cm*26cm) Nonstandard package is available |
|
Delivery Time: |
Within 20-30 days after receipt of deposit |
|
Payment Terms: |
L/C,D/A,D/P,T/T, Western Union, MoneyGram |
|
Supply Ability: |
250000 Piece/Pieces per Month |
Detailed Product Description
1.Electric Deep Fryer Thermostat
2.Temp:30degree-185degree
3.Rate:250V 16A
4.Life:100000 cycles
5.UL,CE,RoHS,CQC Deep Fryer Thermostat
Electric Deep Fryer Thermostat 30-185 deg C
This Deep Fryer Thermostat has a capillary length of approx. 500mm, sensing bulb diameter of 6mm, rated at 16 amps 250V. It is suitable for a deep fryer, as the temperature range up to 185 degree Celsius when set to the maximum. If the Deep Fryer Thermostat requires capillary gland kit, it is also available.
Features of Deep Fryer Thermostat
- UL, CE, CQC, RoHS, and ISO compliant
- Available in a wide selection of preset temperature range and differential
- Temperature adjustable
- Auto-reset design
- Fixed preset temperature type (without adjusting pivot) available
- Snap-Action electric switch
- Little magnetic interference
- Long life usage
- Accessories, such as knob, bezel, capillary gland kit etc. available
- A variety of “D” shaped adjusting pivots are available according to different length
Specifications of Deep Fryer Thermostat
|
Temperature Range of thermostat |
-35°C ~ +320°C |
|
Temperature Range suitable for deep fryer thermostat |
+30°C~+185°C +30°C~+190°C |
|
Temperature Differential |
5% of Action Temperature |
|
Length of Capillary |
300mm~3000mm optional |
|
Material of Capillary and Sensing Bulb |
Stainless Steel |
|
Diameter of Sensing Bulb |
Standard:6mm;(3mm,4mm,5mm,6mm optional) |
|
Electric Rating |
16(3)A 250VAC
|
|
Wiring Diagram |
Single Pole Single Throw (SPST) Single Pole Double Throw (SPDT) |
|
Direction of Terminal |
45 degree 180 degree horizontal 90 degree downward |
|
Material of Terminal |
Brass |
|
Size of Mounting Hole |
2-M4 |
|
Min. Capillary Bend Radius |
5mm |
|
Temperature's Rate of Change |
1°C/min |
|
Life |
100000 cycles |
