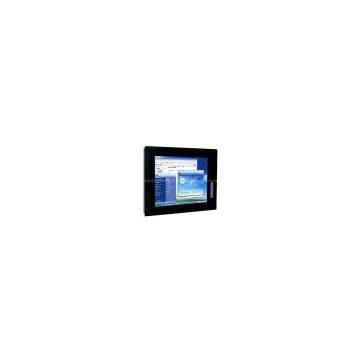

IP65 12.1 Inch Industrial LCD Monitor VGA+DVI+AUDIO

IP65 12.1 Inch Industrial LCD Monitor VGA+DVI+AUDIO thumbnail-1
IP65 12.1 Inch Industrial LCD Monitor VGA+DVI+AUDIO thumbnail-2
IP65 12.1 Inch Industrial LCD Monitor VGA+DVI+AUDIO thumbnail-3
IP65 12.1 Inch Industrial LCD Monitor VGA+DVI+AUDIO photo-1
IP65 12.1 Inch Industrial LCD Monitor VGA+DVI+AUDIO photo-2
IP65 12.1 Inch Industrial LCD Monitor VGA+DVI+AUDIO photo-3
Negotiable MOQ: 5 sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SunPc
Place of Origin:
China
Model Number:
IPM-12T
Contact Supplier Request Quote Chat Now
Shenzhen SUNPC Technology Co. Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SunPc
Place of Origin China
Model Number IPM-12T

shenzhen SunPc Technology Co.LTD provide 8.4", 10.4", 12.1", 15", 17", 19" industiral panel PC and 8.4", 10.4", 12.1", 15", 17" 19" industrial touch LCD monitor

12.1" industrial LCD monitor IPM-12T

Feature:
12.1" SVGA TFT panel supoort 800x600 pixels,
6mm Aluminium front bazel with strengthen glass
Rugged construction and slim modularized design
Input signal: VGA+DVI+AUDIO
400CD/M2 brightness
OSD control keys to optimize the display
AC100-240V wide range external AC adapter
Panel (plush) mount with bracket
NEMA4/IP65 compliant front panel
Meet Standard VESA hole (75*75mm) support desk top stand, Wall mount and swing arm mounting

Specifications;
Diaplay type: 12.1"xSVGA TFT LCD
Screen resolution(Pixels): 800*600
Brightness: 400CD/m2
Contrast Ratio: 600: 1
Max Color: 16.2M
Viewing angle: 140(H), 110(V)
Response time: 35ms
LCD MTBF: 50000hrs

Available options
Touchscreen: Resistive type with USB and RS232 controller
DC Power input: Wide range 8-30V DC input

AV input: Composite video/Audio, S-video input
Power specifications:
Input: 100-240VAC, 50/60Hz
Output: DC-12V@5A/60W, extemal AC adapter

Mechanical and Environmental
Construction: Heavy duty steel and aluminum front panel
Dimension(WHD): 320*258.5*40mm
Weight: Net/3.5KG, Gross/5.0KG
Operating temperature: 0C ~ 50C
Storage temperature: -20C~60C
Anti-Vibration: 17Hz-500 Hz 1G PTP
Anti-shock: 1G/peak (11m sec)

Input signals:
RGB signal: D-SUB 15P Connector(female)
DC input: DC Jack (2.1mm)
Video input (option): RCA connector
S-video signal(optional): S-Video(SVHS)plug
Touch screen RS232 (Option): D-SUB 9p connector(Female)
Touch screen USB (option): USB-A type connector( Female)

Order information:
IPM-12T/C: 12.1" industrial flat panel monitor VGA+Audiovideo input or BNC input, with touchscreen, and RS232 controller
IPM-12T/U: 12.1" industrial flat panel monitor VGA+Audiovideo input or BNC input, with touchscreen, and USBcontroller
DC-DC power: DC8-30V input power module

AV input
