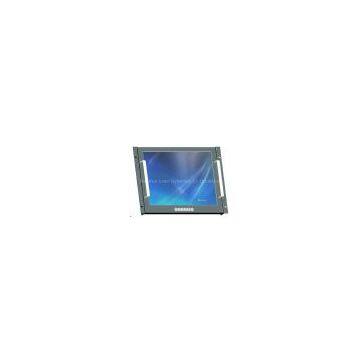

9 Inch 8.5U Rack Mount Touch Display Monitor RCM-19

Origin	China
Model Number	RCM-19
Screen Size	19"

Cheap 19" 8.5U Rack Mount display Monitor RCM-19T

Features
1. Compact 19" rack mount display monitor with 8.5U height
2. 19" SXGA TFT LCD Panel support 1280x1024 pixels
3. 90 tilt adjustment while mounted in rack: +45 ~ -45
4. Input signal : VGA + DVI + AUDIO
5. 300 cd/m2 brightness
6. OSD control keys to optimize the display
7. AC 100-240V wide range external ac adapter
8. Heavy duty steel chassis with strengthen glass (Touch option)
9. Build in 2x2 watts stereo speaker
10. Meet standard VESA hole ( 100x100 mm ), support desk top stand /
wall mount/ swing arm mounting

Specifications
TFT characteristics
Display Type : 19" SXGA TFT LCD
Resolution : 1280 x 1024
lor : 16.7M
Luminance : 300 cd/m2
View Angle : 160(H) , 160(V)
Pixel Pitch : 0.294 x 0.294 mm
Contrast Ratio : 1000 : 1
Response Time : 5 ms
LCD MTBF : 50,000hrs

Available Options
Touch Screen : Resistive with USB and RS232 controller
DC Power Input : wide Range 8~30v DC input

Power Specifications
Input: 100~240VAC,50/60Hz
Output: DC12V5A /60W ,external ac adapter
Input Signals
RGB Signal : D-SUB 15P Connector (female)
DC input : Aviation 2pin Plug
DVI-D Signal : DVI-D input 24pin connector (female)
Touch screen RS232 (option) : D-SUB 9p connector (female)
Touch screen USB (option) : USB-A type connector (female)

Mechanical and Environmental
Construction : Heavy duty steel chassis
Dimensions (WxHxD) : 482.6 x 377 x 48 mm
Net: 8.0kg , Gross:11.0 kg
Operating temperature : 0C to 50C
Storage temperature : -20C to 60C
Anti-Vibration : 17HZ-500 HZ 1G PTP
Anti-Shock :1G / peak( 11m sec)

Certification and Approvals
CE/FCC/ROHS

Ordering Information
RCM-19 : 19"Rack Mount Monitor with VGA + DVI + Audio input
RCM-19T/C : 19"Rack Mount Monitor with VGA + DVI + Audio input, with touch screen and RS232 controller
RCM-19T/U : 19"Rack Mount Monitor with VGA + DVI + Audio input,with touch scree and USB controller
