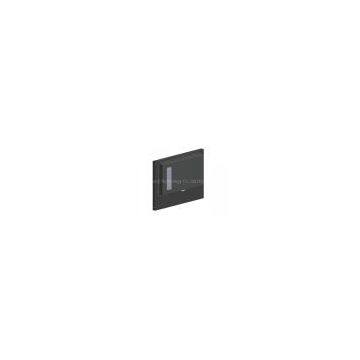

10.4 Inch Industrial Open Frame Industrial LCD Monitor

Shenzhen SUNPC Technology Co. Ltd
10.4 Inch Industrial Open Frame Industrial LCD Monitor thumbnail-1
10.4 Inch Industrial Open Frame Industrial LCD Monitor thumbnail-2
10.4 Inch Industrial Open Frame Industrial LCD Monitor thumbnail-3
10.4 Inch Industrial Open Frame Industrial LCD Monitor photo-1
10.4 Inch Industrial Open Frame Industrial LCD Monitor photo-2
10.4 Inch Industrial Open Frame Industrial LCD Monitor photo-3
Negotiable MOQ: 2 sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SUNPC
Place of Origin:
China
Model Number:
OPD-10HO
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUNPC
Place of Origin China
Model Number OPD-10HO
Origin China
Model Number OPD-10HO
Brand Name SunPc

SunPc Technology Co.LTD provide 8" to 19" open frame flat panel lcd monitor

10.4"open frame flat panel lcd monitor OPD-10HO

1. 10.4" XGA TFT LCD Panel support 1024x768 pixels
2. Open frame structure with strengthen glass
3. Rugged construction and modularized design
4. Input signal : VGA input
5. 400 cd/m2 brightness
6. OSD control keys to optimize the display
7. AC 100-240V wide range external ac adapter
8. Meet standard VESA hole ( 75x75 mm), support desk top stand / wall mount / swing arm mounting

Specification:

TFT Characteristics
Display Type

10.4" XGA TFT LCD

Resolution

1024 x 768

Pixel Pitch(RGB)

0.20625x 0.20625 mm

Contrast Ratio

500 : 1
Light Intensity

400 cd/m2

Viewable Angles

70/70,60/60
Max Colors

262K

Response Time

25 ms
MTBF

50,000hrs.

Display Area(mm)

211.2x158.4 mm

Available Options

Touch Screen

Resistive type

Video input

AV input or VGA+DVI input

Power Specifications

Input

100~240VAC,50/60Hz

Output

DC12V 5A/60W,external AC adapter

Mechanical and Environmental

Construction

Heavy duty steel and aluminum front panel

Dimension (WxHxD)

260x190x40mm

Weight



Operating temperature

32 °F~113 °F (0 °C to 50 °C)

Storage temperature

-4 °F~140 °F (-20 °C to 60 °C)

Storage humidity

10% to 90%non-condensing

Vibration

17 to 500HZ 1G PTP

Anti-Shock

1G /peak( 11m sec)

Input Signals

RGB Signal

D-SUB 15p Connector( Female)

DC input

DC jack (2.0mm)

Audio input

3.5” jack

Certification and Approvals
Certificate & Approvals CE/ RoHS



Ordering Information

VGA+DVI input

OPD-10HO

10.4" Industrial Flat Panel Monitor with VGA input

OPD-10HO-TU

10.4" Industrial Flat Panel Monitor with VGA input ,with Touch screen and USB controller

OPD-10HO-TC

10.4" Industrial Flat Panel Monitor with VGA input ,with Touch screen and RS232 controller

AV input

OPD-10AHO

10.4" Industrial Flat Panel Monitor with VGA+ S-Video + AV input

OPD-10AHO-TU

10.4" Industrial Flat Panel Monitor with VGA+ S-Video + AV input, with Touch screen and USB controller

OPD-10AHO-TC

10.4" Industrial Flat Panel Monitor with VGA+ S-Video + AV input, with Touch screen and RS232 controller

DC-DC power

DC8~30V input power module
