19 Inches Industrial LCD Monitor VGA+DVI

19 Inches Industrial LCD Monitor VGA+DVI thumbnail-1
19 Inches Industrial LCD Monitor VGA+DVI thumbnail-2
19 Inches Industrial LCD Monitor VGA+DVI thumbnail-3
19 Inches Industrial LCD Monitor VGA+DVI photo-1

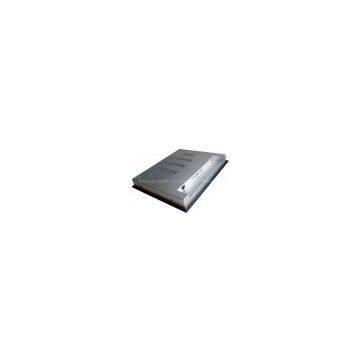

19 Inches Industrial LCD Monitor VGA+DVI photo-2
19 Inches Industrial LCD Monitor VGA+DVI photo-3
US$ 400 - 400 MOQ: 10 sets
Key Specifications
Get Latest Price
Brand Name:
Asund
Place of Origin:
China
Model Number:
IPM-19T
Contact Supplier Request Quote Chat Now
Shenzhen SUNPC Technology Co. Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Asund
Place of Origin China
Model Number IPM-19T

Asund provide 8.4", 10.4", 12.1", 15", 17", 19" industiral panel PC and 8.4", 10.4", 12.1", 15", 17" 19" industrial touch LCD monitor

IPM-19T Feature:
19" SVGA TFT panel supoort 1280*1024pixels,
6mm Aluminium front bazel with strengthen glass
Rugged construction and slim modularized design
Input signal: VGA+DVI+AUDIO
300/M2 brightness
OSD control keys to optimize the display
AC100-240V wide range external AC adapter
Panel (plush) mount with bracket
NEMA4/IP65 compliant front panel
Meet Standard VESA hole (75*75mm) support desk top stand, Wall mount and swing arm mounting

Specifications;
Display type: 19"xSVGA TFT LCD
Screen resolution(Pixels): 1280*1024
Brightness: 300CD/m2
Contrast Ratio: 1000: 1
Pixel Pitch: 0.294* 0.294mm
Viewing angle: 160(H), 160(V)
Response time: 5ms
LCD MTBF: 50000hrs

Available options
Touchscreen: Resistive type with USB and RS232 controller
DC Power input: Wide range 8-30V DC input

AV input: Composite video/Audio, S-video input
Power specifications:
Input: 100-240VAC, 50/60Hz
Output: DC-12V@5A/60W, extemal AC adapter

Mechanical and Environmental
Construction: Heavy duty steel and aluminum front panel
Dimension(WHD): 482.6*399.2*48mm
Weight: Net/9KG, Gross/11.5KG
Operating temperature: 0C ~ 50C
Storage temperature: -20C~60C
Anti-Vibration: 17Hz-500 Hz 1G PTP
Anti-shock: 1G/peak (11m sec)

Input signals:
RGB signal: D-SUB 15P Connector(female)
DC input: DC Jack (2.1mm)
Video input (option): RCA connector
S-video signal(optional): S-Video(SVHS)plug
Touch screen RS232 (Option): D-SUB 9p connector(Female)
Touch screen USB (option): USB-A type connector( Female)

Order information:
IPM-19T/C: 19" industrial flat panel monitor VGA+Audiovideo input or BNC input, with touchscreen, and RS232 controller
IPM-19T/U: 19" industrial flat panel monitor VGA+Audiovideo input or BNC input, with touchscreen, and USBcontroller
DC-DC power: DC8-30V input power module.
