IP65 10.4 Inch Industrial LCD Monitor VGA+DVI+Audio (IPM-10T)

IP65 10.4 Inch Industrial LCD Monitor VGA+DVI+Audio (IPM-10T) thumbnail-1
IP65 10.4 Inch Industrial LCD Monitor VGA+DVI+Audio (IPM-10T) thumbnail-2
IP65 10.4 Inch Industrial LCD Monitor VGA+DVI+Audio (IPM-10T) photo-1

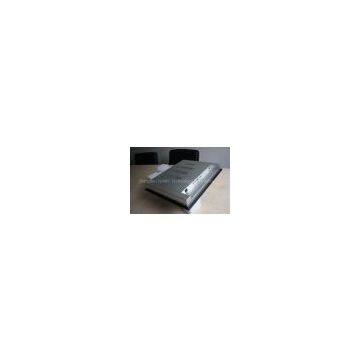

IP65 10.4 Inch Industrial LCD Monitor VGA+DVI+Audio (IPM-10T) photo-2
Negotiable MOQ: 10 sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SunPc
Place of Origin:
China
Model Number:
IPM-10T
Contact Supplier Request Quote Chat Now
Shenzhen SUNPC Technology Co. Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SunPc
Place of Origin China
Model Number IPM-10T

10.4" industrial LCD monitor IPM-08T

Feature:
10.4" SVGA TFT panel supoort 800x600 pixels,
6mm Aluminium front bazel with strengthen glass
Rugged construction and slim modularized design
Input signal: VGA+DVI+AUDIO
230CD/M2 brightness
OSD control keys to optimize the display
AC100-240V wide range external AC adapter
Panel (plush) mount with bracket
NEMA4/IP65 compliant front panel
Meet Standard VESA hole (75*75mm) support desk top stand, Wall mount and swing arm mounting

Specifications;
Display type: 10.4"xSVGA TFT LCD
Screen resolution(Pixels): 800*600
Brightness: 230CD/m2
Contrast Ratio: 500: 1
Max Color: 16.2M
Viewing angle: 120(H), 100(V)
Response time: 35ms
LCD MTBF: 50000hrs

Available options
Touchscreen: Resistive type with USB and RS232 controller
DC Power input: Wide range 8-30V DC input

AV input: Composite video/Audio, S-video input
Power specifications:
Input: 100-240VAC, 50/60Hz
Output: DC-12V@5A/60W, extemal AC adapter

Mechanical and Environmental
Construction: Heavy duty steel and aluminum front panel
Dimension(WHD): 305*220*36mm
Weight: Net/3.5KG, Gross/5.0KG
Operating temperature: 0C ~ 50C
Storage temperature: -20C~60C
Anti-Vibration: 17Hz-500 Hz 1G PTP
Anti-shock: 1G/peak (11m sec)

Input signals:
RGB signal: D-SUB 15P Connector(female)
DC input: DC Jack (2.1mm)
Video input (option): RCA connector
S-video signal(optional): S-Video(SVHS)plug
Touch screen RS232 (Option): D-SUB 9p connector(Female)
Touch screen USB (option): USB-A type connector( Female)

Order information:
IPM-10T/C: 10.4" industrial flat panel monitor VGA+Audiovideo input or BNC input, with touchscreen, and RS232 controller
IPM-10T/U: 8" industrial flat panel monitor VGA+Audiovideo input or BNC input, with touchscreen, and USBcontroller
DC-DC power: DC8-30V input power module

AV input
