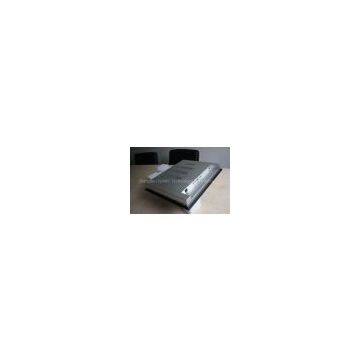

8 Inch Industrial LCD Monitor VGA input

1. 8" SVGA TFT LCD Panel support 800x600 pixels
2. 6mm Aluminum front bezel with strengthen glass
3. Rugged construction and modularized design
4. Input signal : VGA + Audio
5. 250 cd/m2 brightness
6. OSD control keys to optimize the display
7. AC 100-240V wide range external ac adapter
8. Panel(Flush) mount with bracket
9. NEMA4 / IP 65 compliant front panel

8" SVGA TFT LCD

Resolution

800 x 600

Pixel Pitch(RGB)

0.0675x 0.2025 mm

Contrast Ratio

500 : 1

250 cd/m2

Viewable Angles

140°(H) , 120°(V)

262K

Response Time

25 ms

20,000hrs.

Available Options

Touch Screen

Resistive type with USB and RS232 controller

DC power input

Wide Range 8-30V DC input

Power Specifications

Input

100~240VAC,50/60Hz

Output

DC12V@5A/60W,external AC adapter

Mechanical and Environmental

Construction

Heavy duty steel and aluminum front panel

Dimension (WxHxD)

260x185x36mm

Weight

Net: 3KG, Gross: 4.5KG

Operating temperature

32 °F~113 °F (0 °C to 50 °C)

Storage temperature

-4 °F~140 °F (-20 °C to 60 °C)

Storage humidity

10% to 90%non-condensing

Vibration

17 to 500HZ 1G PTP

Anti-Shock

1G /peak( 11m sec)

Input Signals

RGB Signal

D-SUB 15p Connector( Female)

DC input

DC jack (2.1mm)

Touch screen RS232 (option)

D-SUB 9p Connector (Female)

Touch screen USB (option

USB-A Type connector (Female)

Certification and Approvals

VGA input

IPM-08

8" Industrial Flat Panel Monitor, with VGA input+ Video input or BNC input

IPM-057T/C

8" Industrial Flat Panel Monitor, with VGA input+ Video input or BNC input ,with Touch screen and RS232 controller

IPM-08T/U

8" Industrial Flat Panel Monitor, with VGA input+ Video input or BNC input ,with Touch screen and USB controller

DC-DC power

DC8~30V input power module
