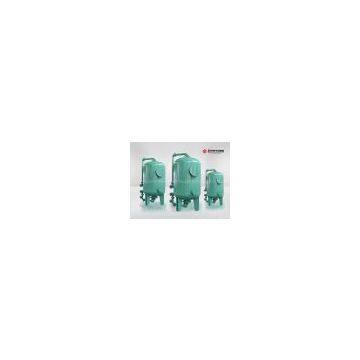

Manganese Sand Filter

  It would serious affects the boiler if the iron and manganese in the water exceeds standard,and would acutely harmed one's health if using the water for drinking.Manganese Sand Filter can effectively remove more than 98% manganese sand in the water.
Application scope of Manganese Sand Filter:
 Food,drink,papermaking,brewing industry,etc. The treatment of exceeding iron content water,underground water,well water transformed into drinking water through deironization.
Please refer to the equipment parameter below:
     1.Equipment operating pressure
     2.Water consumption
     3.Iron content
     4.Manganese content
     5.Application of water

Treatment capacity	Overall dimensions	Connection Dia	Drum shell thickness
2m3	φ600×2150mm	DN50	6mm
5m3	φ800×2750mm	DN50	8mm
10m3	φ1000×2850mm	DN50	8mm
15m3	φ1200×2850mm	DN65	8mm
20m3	φ1400×3250mm	DN65	10mm
30m3	φ1600×3450mm	DN80	10mm
40m3	φ1800×3750mm	DN80	12mm
50m3	φ2000×3750mm	DN100	12mm
70m3	φ2200×3850mm	DN125	12mm
100m3	φ2400×4150mm	DN150	14mm
120m3	φ2600×4450mm	DN150	14mm
150m3	φ2800×4650mm	DN150	14mm
170m3	φ3000×4850mm	DN200	14mm
200m3	φ3200×5100mm	DN200	14mm
