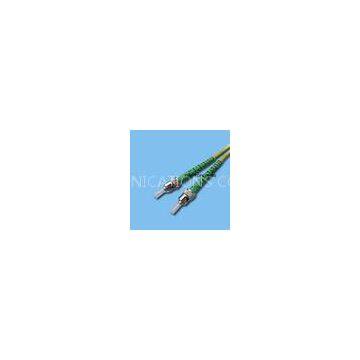

ST/APC-ST/APC Singlemode Simplex Patch Cord

ST fiber cable connector has a bayonet-style housing and a long spring-loaded ferrule hold the fiber. They are available in both multimode or singlemode versions. Horizontally mounted simplex and duplex adapters are available with metal or plastic housing, with a choice of phosphor bronze or zirconia split sleeve. The ST fiber patch is one of the older generations of connector, but is still widely used for multimode networks, including LANs for buildings and campuses.

Features
---Low insertion and back reflection loss
---Good exchangeability
---Good durability
---High temperature stability
---Standard: Telcordia GR-326-CORE

Applications

-Telecommunication networks
-Data transmission networks
-Computer networks (Gigabit Ethernet, SoNet, etc. )
-Cabling system
-Interconnection of fiber optic transmission equipments
-ODF of optical transmission systems
-FTTX applications

Specifications

Fiber Type:  OS1(9/125um) OM1(62.5/125um) OM2(50/125um) OM3(10GIG)
Connector Polishing Type:  PC, UPC, APC
Fiber Cable Jacket material:  PVC/LSZH
Standard color: Singlemode :Yellow color, Multimode :Orange color
Cable strain relief (boot) O.D. : 0.9mm/1.8mm/2.0mm/3.0mm
Compliant with JIS C-5973, IEC RoHS
Q.C. : 100% function testing include Insertion loss, Return loss and Connector end face geometry.

Parameter table

Insertion loss   Singlemode: PC/UPC≤0.2dB  APC≤0.2dB

                            Multimode  PC/UPC≤0.3 dB

Return loss       Singlemode PC/UPC≥50dB  APC≥60 dB

                            Multimode   PC/UPC≥35 dB
