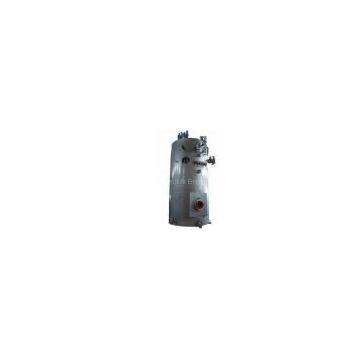

High Efficiency Natural Circulation Vertical Steam Exhaust Gas Boiler

High Efficiency Natural Circulation Vertical Steam Exhaust Gas Boiler

Descrition:

The furnace and smoke side of boiler tubes absorb the heat produced by fired oil and transfer it to water, then the water will be evaporated into steam. Steam rise up and enter the vapor space because its specific gravity is reduced. The space left by steam will be made up by water with a heavier specific gravity. This process forms a natural steam-water circulation. When the water level becomes lower because water is evaporated into steam continuously, the feed water pump will feed water into boiler to keep the water level in the normal range. This process continues and steam will be produced continuously by absorbing the heat produced by fired oil to heat water.

Applications:

Marine

Specifications:

◎.Exhaust Gas Boiler

This series boiler is used for producing steam and hot water by absorbing the exhaust gas heat from diesel engine, as to improve the efficiency of diesel engine. So boiler’s operator should attach importance to the exhaust gas boiler’s management and also should familiar with the boiler’s structure and relevant system, should do the daily maintenance, and make the boiler’s yield benefit.

Brief instruction to boiler’s structure

    The boiler is a natural circulation vertical exhaust gas boiler with smoke tube. It consists of boiler body, upper & lower smoke chamber; exhaust gas bypass equipment and so on.
    The boiler body is formed the drum by shell, plain end and lower tube plate. Upper tube plate is inside the drum, the upper tube plate is welded with lower tube plate by steel tube, the upper tube plate is connected with plain end by smoke chamber plate. It is the circular steam space outside of the smoke chamber, the flue is in the above of upper tube plate, all smoke tubes are covered by boiler water, smoke box is in the under of lower tube plate, and the smoke box is connected with the exhaust gas bypass equipment. There are many hand-holes under the shell. In view of the convenience for checking & repairing boiler, manhole will be installed on the boiler.
    The steam inside the boiler can be transferred to outside by main steam valve that is on boiler’s plain end. To insure boiler’s safety, one or two-safety valve which can discharge total steam produced by the boiler is installed on the plain end. Once boiler is running in the abnormal condition and result in super-high pressure, steam can be discharged from safety valve.
    There are water level gauges on the above or under of steam-water dividing surface of the upper of drum, and water level gauge can indicate the water level all the time, it’s very helpful for boiler’s operator to do supervision. In additional, at the same height limit, there is one water level controller used for the transmission of water level, and also can send all kinds of electric sign to boiler’s controlling system according to the different water level. According to these different electric sign, controlling system can control the running of water pump, and send alarm sign.
    The upper smoke box lies in the top of boiler. Exhaust gas from boiler body discharge to chimney pass by upper smoke box.
The lower part is the inlet smoke box for exhaust gas. The exhaust gas inlet nozzle will be connected with the main diesel engine on the lower smoke box. On the smoke box, there is an inspection door for overhauling.
    The thermometer and barometer that lies on the upper & lower smoke box separately can indicate the temperature and resistance force of exhaust gas as to supervise the boiler’s running status.
    In order to reduce the heat loss and insure the safety of boiler’s running, the outer surface of boiler body and upper & lower smoke box are covered with thick 60mm insulation.

◎.Oil Fired Boiler

 Light oil or heavy oil is suitable for this boiler plant. The boiler can be used for heat supply, oil heating and daily life service.

Brief Introduction of Boiler Structure
The boiler body consists of boiler shell, furnace and pin tubes with an all welded type structure. The pin tube being assembled inside theΦ219 or Φ273 smoke tube separately, consists of closed-pitched columnar steel pins which are welded on the outside surface of a steel tube. The boiler furnace is a full water cooling furnace consisting of a cylindrical furnace and upper, lower end which increases heat transfer efficiently.
The convection-heating surface of boiler consists of smoke tubes and pin tubes. The high temperature smoke from furnace enters into smoke tubes, flush the internal surface of smoke tubes and the pin tubes at the same time, forming a high efficient convection-heat exchange tube group.

The s
