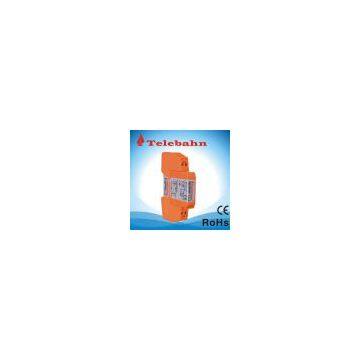

Lightning Protection Devices

Name: Lightning Protection Devices
Brand: Telebahn
SKU: 147250628
Availability: InStock

Negotiable MOQ: 10 Kilograms (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Telebahn

Place of Origin:

China

Model Number:

BS LC 24

Telebahn Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name Telebahn

Place of Origin China

Model Number BS LC 24

Type		BS LC 24	BS LD 24	BS LC 48	BS LD 48
Order No.		610 005	610 006	610 007	610 008
Nominal voltage	U_N	24V		48V
Rated voltage (max. Continuous voltage)	U_c	26V-/19V~		55V-/39V~
Nominal current	I_L	0.5A
Nominal discharge Per line current (8/20) Total	I_n	20kA
Lightning impulse Per line current (10/350) Total	I_imp	25KA 5KA	25KA 5KA	25KA 5KA	25KA 5KA
Voltage protection Line/Line level at I_imp Line/PG	U_p	≤90V ≤45V	≤40V ≤700V	≤150V ≤75V	≤80V ≤700V
Response time	t_A	≤ 1ns	≤ 1ns	≤ 1ns	≤ 1ns
Bandwidth AD/PG Line/Line	f_G	5.1MHz ┅	┅ 5.0MHz	8.5MHz ┅	┅ 8.0MHz
Series impedance per line	R	2.2Ω	2.2Ω	2.2Ω	2.2Ω
Capacitance Line/Line Line/PG	C	0.7nF 1.3nF	0.9nF 7pF	0.3nF 0.6nF	0.6nF 7pF
Operating temperature range	θ	-40℃…+80℃
Mounting on		35mm DIN rail
Enclosure material		Orange thermoplastic,UL94-V0
Test standards		YD/T 1542-2006;GB 18802.21-2004;IEC 61643-21;2000
Certification
