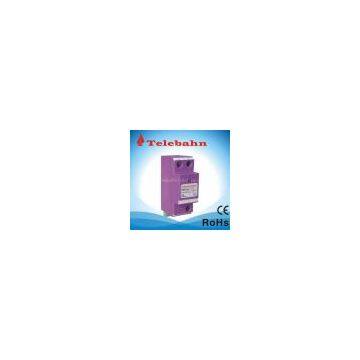

Lightning Arrester

Lightning Arrester thumbnail-1
Lightning Arrester photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Telebahn
Place of Origin:
China
Model Number:
BT WS 600 RM
Contact Supplier Request Quote Chat Now
Telebahn Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Telebahn
Place of Origin China
Model Number BT WS 600 RM

Product Description

This product is applied in wind turbine system. The max. continuous operation voltage up to 1000V DC, protecting wind turbine and so on.



Main character

High discharge capacity, quick response

Low voltage protection level and with double terminals for parallel or series (V-shape) Connection

Multi functional connection for conductor and busbars

Window will display red when fault occur, also provide remote alarm terminal at the same time



Parameters







Type



BT WS 600 RM

BT WS 1000 RM

Order No.



800 210

800 211

Rated voltage

(Max. Continuous voltage)

Uc

600V-

600V-

1000V-

1000V-

Nominal discharge

current (8/20µs)

In

20KA

15KA

Max. discharge

current (8/20µs)

Imax

40KA

30KA

Voltage protection level for In

Up

≤ 3KV

≤ 4.2KV

Voltage protection level at 5kA

Up

≤ 2.5KV

≤ 3.5KV

Response time

tA

≤ 25ns

≤ 25ns

Max. Back up fuse (L)



200A gL / gG

200A gL / gG

Max. Back up fuse (L-L)



125A gL / gG

125A gL / gG

Short-circuti withstand

capability for max. backup fuse



25KAms

Operating temperature range

Tu

-40°C…+80°C

Cross-section area



35mm2 solid/50mm2 flexible

Mounting on



35mm DIN rail

Enclosure material



Purple thermoplastic ,UL94-V0

Dimension



2 mods

Test standards



YD/T 1235.1-2002,GB 18802.1-2002,IEC 61643-1:1998-02

Certification



CE (LVD,EMC)

BT  WS…  RM Additional information

Type of remote

signalling contact



Switching contact

Switching capacity

UN/IN

AC: 250V/0.5A, DC: 250V/0.1A, 125V/0.2A, 75V/0.5A

Cross-sectional area for

remote signalling contact



Max. 1.5mm2  solid/flexible
