2.4W High Reliability Hybrid AC DC Switching Power Supply

Kuantech (shenzhen) Co. Ltd
2.4W High Reliability Hybrid AC DC Switching Power Supply thumbnail-1

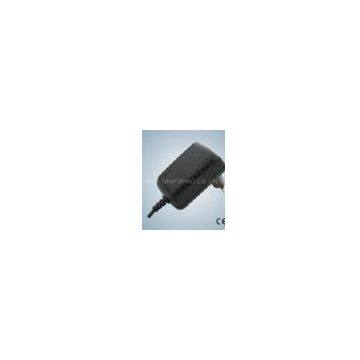

2.4W High Reliability Hybrid AC DC Switching Power Supply photo-1
Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Ktec
Place of Origin:
China
Model Number:
KSAP2R4
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Ktec
Place of Origin China
Model Number KSAP2R4
Delivery Time:20days
Key  Features of  KSAP2R4

  Products highlights

●High Power Density

●EN60601 Medical Safety Approvals

●Optional Conformal Coating

●Operating temp Range ( 0℃ to 40℃)

Industrial shock and vibration(＞50G)

●MTBF 50K hours@25℃ (MIL-HDBK-217F)

●ESD: air discharging±15KV, contact discharging±8KV

Key Applications of KSAP2R4

It’s suitable for an extremely wide Range of applications, including:

●General Adapter Use medical and laboratory equipment

Input

●Input     Voltage :   90 to 264 VAC

●Frequency  :           47-50/60-63hz

●Input      current :   0.15A(Max)

●Inrush    current :  60AMax.  240VAC

●Leakage current : 0.25 mA Max

Output

●Over voltage protection

●Over current protection

  at 150% of lo and Auto-recovery

●Electronic short circuit protection

●Ripple&noise 20MHZ bandwidth:200mV

●Operatingtemperature 0~40℃Free convection

●Sea level Non-operating temperature -20~80℃

●Operating humidity 10-90% RH Non Condensing

Safety standards

●Information technology equipment

●EN60601-1:1990+A1:1993+A2:1995

Certificates and approvals

●Test report for EN60601

EMI Emission

●Radiation Test&Conduction Test:EN 55022/FCC Part15

●Harmonic Test : EN 61000-3-2

●Flicker       Test : EN 61000-3-3

EMS immunity

●ESD   Test:EN 61000-4-2

●RS     Test:EN 61000-4-3

●EFT    Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS      Test:EN 61000-4-6

●DIP     Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 65*36*27

Product tables for 2.4W
Packing & shipping
Down Load
Click Down
