[GD]145 Kiddie Rides Coin Selector Acceptor Validator

[GD]145 Kiddie Rides Coin Selector Acceptor Validator thumbnail-1
[GD]145 Kiddie Rides Coin Selector Acceptor Validator thumbnail-2
[GD]145 Kiddie Rides Coin Selector Acceptor Validator thumbnail-3
[GD]145 Kiddie Rides Coin Selector Acceptor Validator photo-1

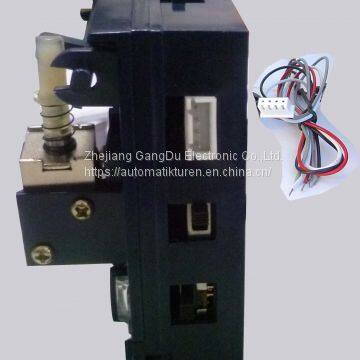

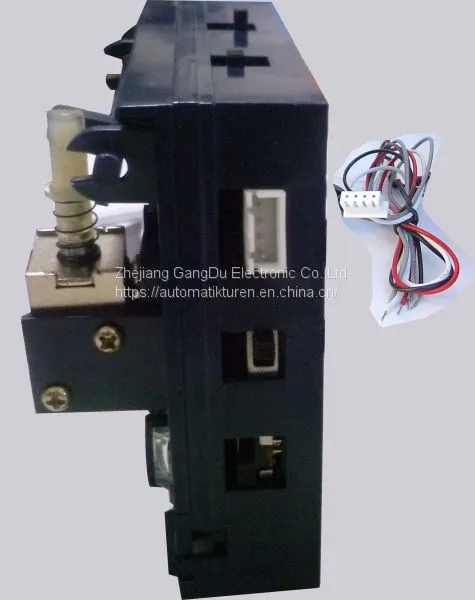

[GD]145 Kiddie Rides Coin Selector Acceptor Validator photo-2

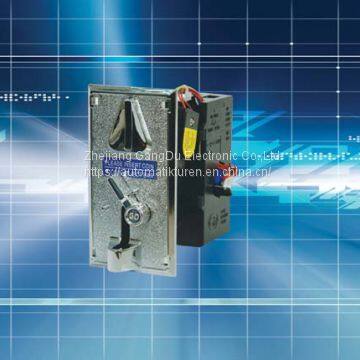

[GD]145 Kiddie Rides Coin Selector Acceptor Validator photo-3
US$ 17 - 19 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
gangdu
Place of Origin:
China
Model Number:
250b
Contact Supplier Request Quote Chat Now
Zhejiang GangDu Electronic Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name gangdu
Place of Origin China
Model Number 250b
Type Racing Game



  1 coin acceptance,handle different countrys coins ,pulse output signal,12v input,

Apply to: vending machine.wash machine.shoe cleaning machine.TV.Massage chair.petrol filling station .automatic battery recharge.PC.etc.

Elite model.anti-false coin.anti-string,anti-jam,anti-fishing.support large coin,thick coin,small coin.stable performance,accurately recognize.smoothly deposit)

option:RS232,USB interface.energy saving type with UPS,or 24v input,

 .Coin diameter: 18mm -29mm

.Coin thickness: 1.2mm -3mm

.Work voltage: DC12V (more or less 20percent)

 .Current in 50ma  .Pulse signal: dium-45ms and slow-65ms

 .Size per unit: W 14 x D6.5 x H13(mm)

 .Net weight: 600grams/each

 .Packing: 30 pcs/case

 .Per case: 16.6 kgs

.Size per case: W435 x D350 x H270(mm)


Operation

  Step 1: operate with the game machine's standard mode Normal Open

Step 2: switch to the correct speed(pulse) of coin machine: FAST 25ms.MEDIUM 45ms and SLOW 65ms

 Step 3: Connecting the +12V DC and Ground wiring for the coin Acceptor.

Step 4: Arrange the token sample that you want the Coin acceptor to accept

Step 5: Set the switch from "Start" to "Set" position.the LED light will show "00".press the switch which for adjusting the coin's value.to adjust the coin value when the coin programming."00-99" means how many times of the out ,pulse signal will be sent when the programmed coin was deposited.return the switch from "Set" to "Start".it is finished

Step 6: Set the switch from "NOM" to "MGN" position.then turn the switch from "Start" to "Set" position.the LED show default "P1"."P1-P9" means a output signal needs how many programmed coins to be deposited like "P1.P2.P3…P9"

Step 7: Prepare the needed sample coins.

Step 8: Insert 10pcs coins in turn to set the coin (time interval 0.3 seconds)

Step 9: Turn the coin set switch to "Start" and finished the setting.


Product Tags: coin acceptor selector , coin validator mechanism , coin slot hopper
