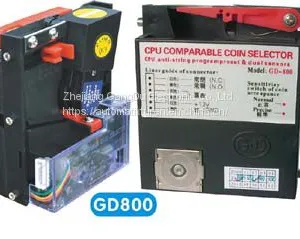

GD800 comparable coin mechansim(top insert)

·Size per unit: W 14 x D6.5 x H13(mm)

· Net weight: 600grams/each

·Packing: 30 pcs/case

·Per case: 16.6 kgs

·Size per case: W435 x D350 x H270(mm)

1. Remove yellow plastic token & replace your coin to sampling clamp;

2. Adjust diameter-rail of lid for preventing bigger invalid coins from insering:

3. Drive screw off lid-wing if coin thickness more than 2.5mm:

4. Connect loom to host machine as following lines guide : White line(N.C. signal)
Green line(N.O. signal)
Gray lineCounter (Meter)
Yellow lineinhibit/low(<+1V)
Red linePower DC +12V
Black LineGround (GND)

5. Switch Time Duration for correct triggering of coinacceptance if necessary .
Long duration of Pulse :. 100ms
Common duration of Pulse :50ms
Short duration of Pulse :20ms

6. VR tunning for sensitivity of coin acceptance.
Turn clockwiste (+) for slackacceptance.
Turn anti-clockwise(-) for tightacceptance.
