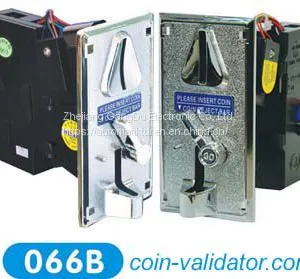

Help Center[GD]Z066B Comparable Coin Selector
![[GD]Z066B Comparable Coin Selector thumbnail-1](https://img13.fr-trading.com/2/1_75_87094_350_279.jpg.webp)
![[GD]Z066B Comparable Coin Selector photo-1](https://img13.fr-trading.com/3/1_75_87094_350_279.jpg.webp)
Related Products
-
![[GD]888 8 Hole Coin Hopper Counter for Arcade Jamma Slot Game or Vending Machine Sorters](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
[GD]888 8 Hole Coin Hopper Counter for Arcade Jamma Slot Game or Vending Machine SortersUS$ 9 - 11MOQ: 1 Unit -
[GD] Y006/007 Intelligent Coin AcceptorUS$ 7 - 7MOQ: 1 Piece
-
[GD]-JINGAN 8 Hole Coin Hopper Counter for Arcade Jamma Slot Game or Vending Machine SortersUS$ 30 - 30MOQ: 1 Piece
-
[GD]145 Kiddie Rides Coin Selector Acceptor ValidatorUS$ 17 - 19MOQ: 1 Unit
-
[GD]007 Intelligent Coin AcceptorUS$ 6 - 9MOQ: 1 Unit
15 years long history model,Elite model.anti-false coin.anti-string,anti-jam,anti-fishing.support large coin,thick coin,small coin.stable performance,accurately recognize.smoothly deposit) Apply to: vending machine.wash machine.shoe cleaning machine.TV.Massage chair.petrol filling station .automatic battery recharge.PC.etc.
Specifications
.Rating voltage: DC+12V with 20percent discrepancy .Stand by Current: 50mA-55mA .Operating Current: 310mA-340mA .Accepted coin diameter: 18mm-32mm .Accepted coin thickness: 1.2mm-3.0mm .Size per unit: W14 x D6.5 x H12.5(mm) .Net weight: 0.38kgs .Packing: 50 pcs/case .Per case: 17.86 kgs .Size per case: W745 x D352 x H275(mm)
1.Remove the yellow plastic sample coin from the clamp & repace the coin to the clamp.
2. Choose N.O/ N.C in coordination with the machine specification.
3. VR turning for sensitivity of coin acceptance: turn clockwise (+)for strict coin selecting: anti-clockwise(-)for slack.
4. Wiring diagram
1)Empty
2)Black line GND
3)White line coin signal & coin counter
4)Red line DC+12V
