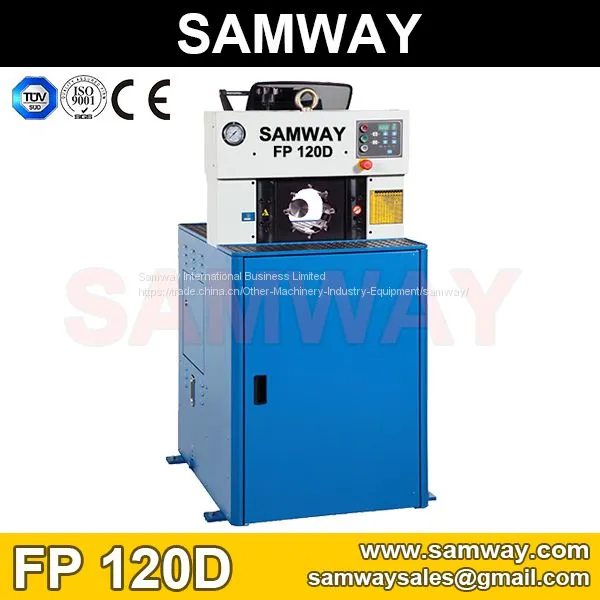

Samway FP120D Crimping Machine
Feature description
Precision Digital Control
Quick Change Tool and Die rack
Designed for Mass Production
Energy Saving and Safety Operation
CE Approved
Specification
Main Specification
SAMWAY FP120D
Max Hydraulic Hose
2" 6SP
Crimping Range mm
4-87
Die Type
P32
Master Die Length mm
100
Max Opening mm
+65
Motor KW
5.5 by SIEMENS
Crimping Force KN
2800
Crimpings Per Hour
2400
Control
Precision Digital Control
Foot pedal
Included
Die Rack
Included
Quick Change Tool
Included
Backstop Device
Included
Mirror
Included
Control by Pressure
Optional
Noise Level dBA
65
Protection Class
IP56
L*W*H mm
860*1000*1600
Weight KG
1220
Standard Die Sets Included
Die No. 10* 12* 14 16 19 22 26 30 34 39 45 51 57 63 69 74* 78*
Length 55 55 55 55 55 55 75 75 90 90 90 90 90 100 100 100 100
* Optional Die Sets Upon Request
Order No.
220V, 400V, 415V, 440V,480V 3 phase :00001710
220V 50/60hz single phase :00001712
