Samway P51D 4" Crimper
Feature description
Digital Precision Control
Quick Change Tool and Die rack
Energy Saving and Safety Operation
TUV CE Approved

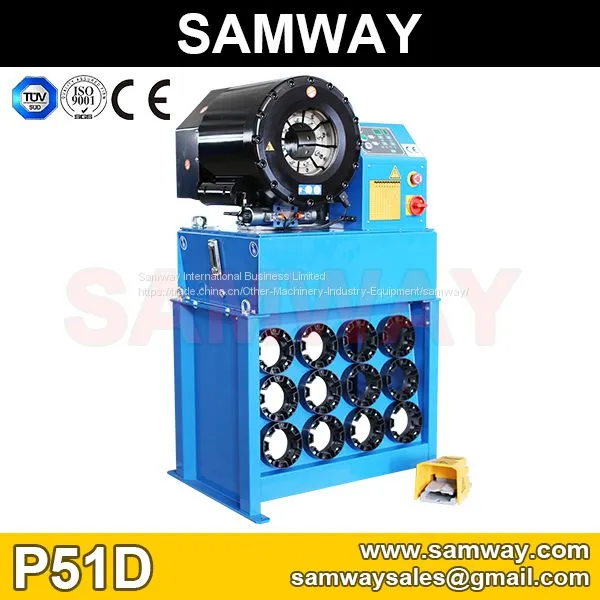

SAMWAY P51D 4" Hose Crimping Machine
The Heavy Duty 4" Hose Crimping Machine for all hydraulic hose up to 4" or industrial hose up to 4".
Digital Control makes the hydraulic hose assembly easier more simple and precision.
Samway P51D come with the quick change tool and die rack complete with die sets for hydraulic hose.
Optional die sets for the Industrial Hose.
Samway P51D is an precision workshop hose crimping machine for high standard high quality
hydraulic hose assembly and industrial hose up to 4".
Please contact SAMWAY for more details of Samway Hose Crimping Machines.
for more details.
Specification
Main Specification
SAMWAY P51D
Max Hydraulic Hose
3" 4SP
Industrail Hose
4”
Crimping Range mm
4-140
Die Type
P32
Master Die Length mm
100
Max Opening mm
+40
Motor KW
4
Crimping Force KN
3800
Crimpings Per Hour
900
Control
Digital Control
Foot pedal
Included
Die Rack
Included
Quick Change Tool
Included
Backstop Device
Optional
Control by Pressure
Optional
Noise Level dBA
65
Protection Class
IP56
L*W*H mm
760*650*1520
Weight KG
450
Standard Die Sets Included
Die No.
10* 12* 14 16 19 22 26 30 34 39 45 51 57 63 69 74* 78*
Length
55 55 55 55 55 55 75 75 90 90 90 90 90 100 100 100 100
* Optional Die Sets Upon Request
