Horizontal Automatic Continuously Foaming Produced-line
US$ 190,000 - 200,000
/ Set
1 Set(Min. Order)
- Guangzhou Nansha
- T/T
You May Like
-
Computerized Panel Cutter Machine/Automatic Quilting Cutting Machine
-
Computerized Multi-needle Shuttle Quilting Machine
-
TB-1Mattress Tape Edge Sewing/ Banding Machine
-
V-PG-3A Queen /Single Size Pocket Coil Glueing Machine
-
CIFM Guangzhou Fair Good Quality Pocket Coil Glueing Machine V-PG-3A
-
V-PCS-G1 Excellent Performance Pocket Spring Coil Machine
Product Details
| Condition | New | Product Type | Other, Long Block Foam | |
| Place of Origin | Guangdong, China | Brand Name | Everbright | |
| Model Number | HSLF-2400 | Voltage | 380v, 3 phase, 50Hz | |
| Power(W) | 150kw | Dimension(L*W*H) | L34000xW4550xH3200mm | |
| Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
This machine is mostly used for producing the soft urethane foam rubber productions (density is about 10~50kg/m3). EVERBRIGHT BEDDING MANUFACTORY LTD.
Product Description
HSLF-2400 Horizontal Automatic Continuously Foaming Produced-line
This machine is mostly used for producing the soft urethane foam rubber productions (density is about 10~50kg/m3). Its automatization level is high, the production is low-cost and the operation is simple. It is desirable equipment to manufacture products of foam rubber in furniture, shoes, circumference, electron, clothing and automobile industry.
Main Technical Parameters:
Oven Length | 17.5m | Linking Conveyer Belt Length | 17.5m |
Foam Height | <1.25m | Side Board Adjustable Width | 0.98~2.3m |
Foaming Width | 1~2.25m | Conveyer Belt Speed | 0~8/min |
Foaming Density | 10~50kg/m3 | Mixing-head Power | 37kw |
Total Power | 150kw | Total Output | 100~300kg/min |
Machine External Size (L×W×H) | L34000×W4550×H3200mm | ||
Detail Drawing
| | ||
| Touch-screen Interface (Control) | |||
| |||

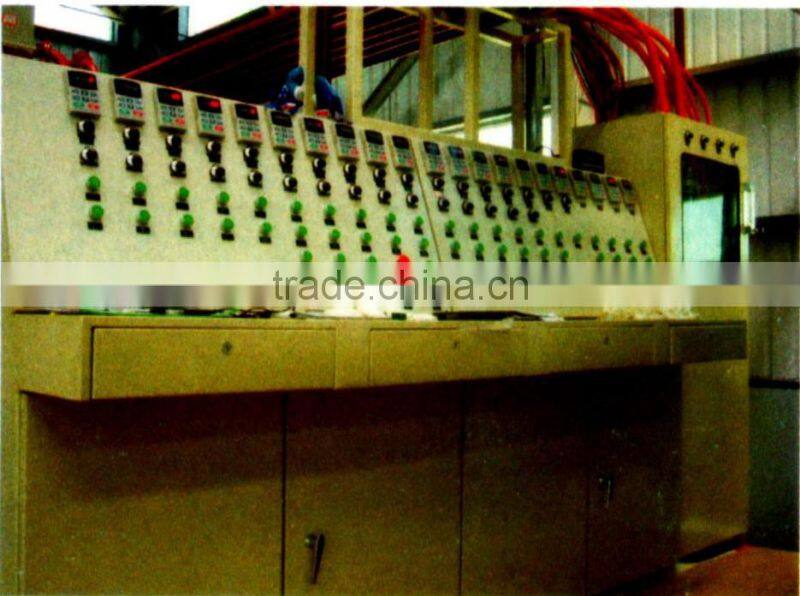

| Control Box | |||
| |||
| Film Lift Device | |||
| | | |

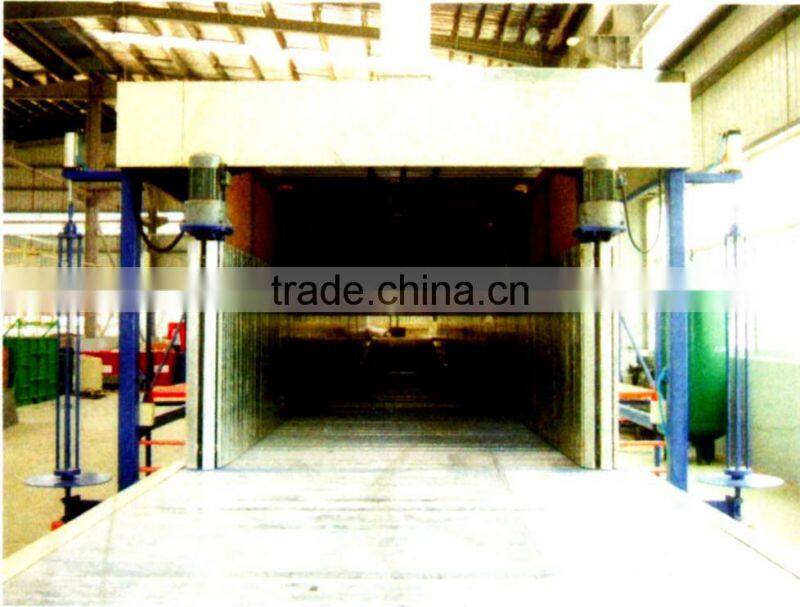

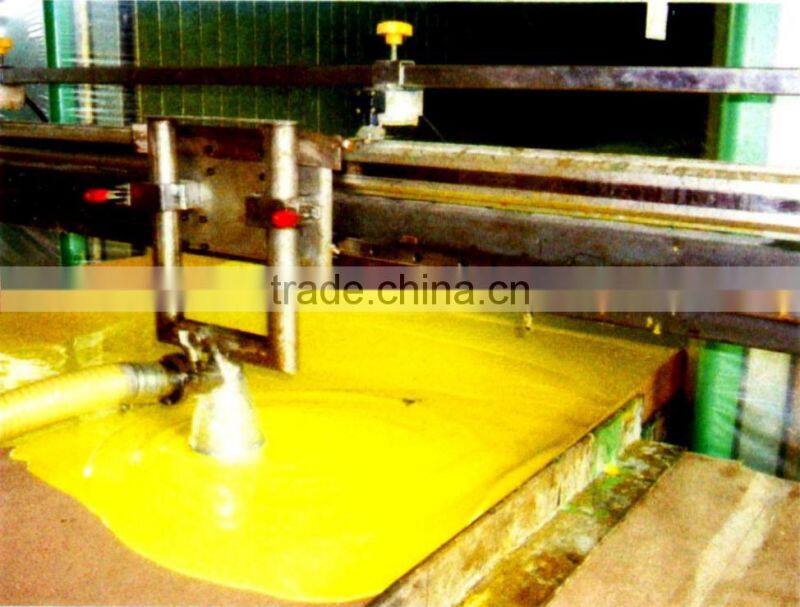

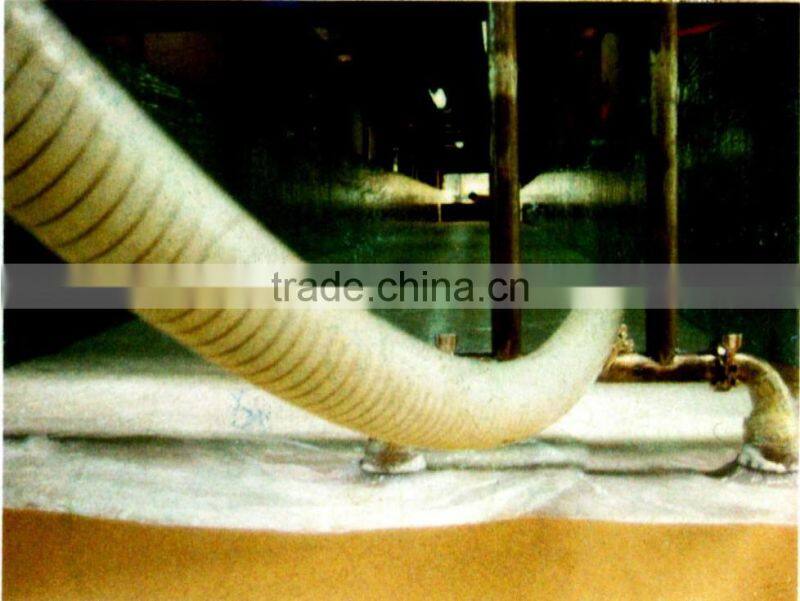

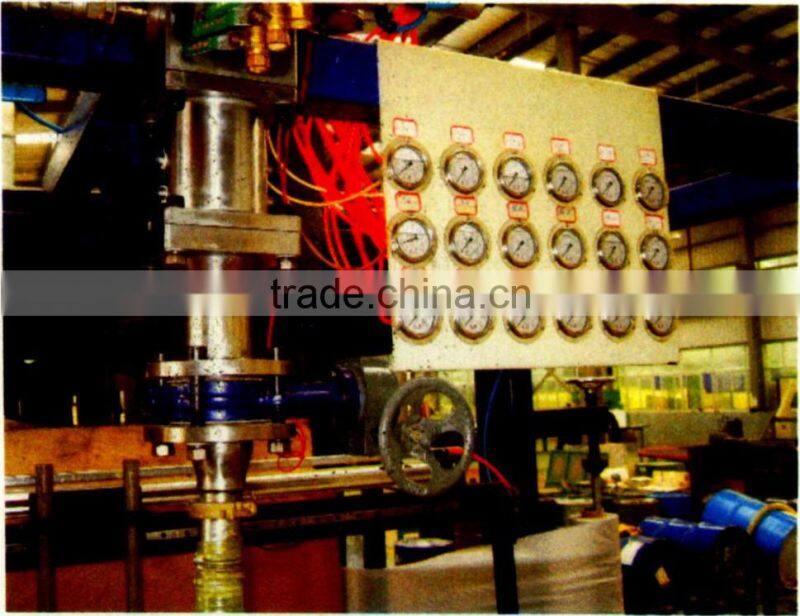

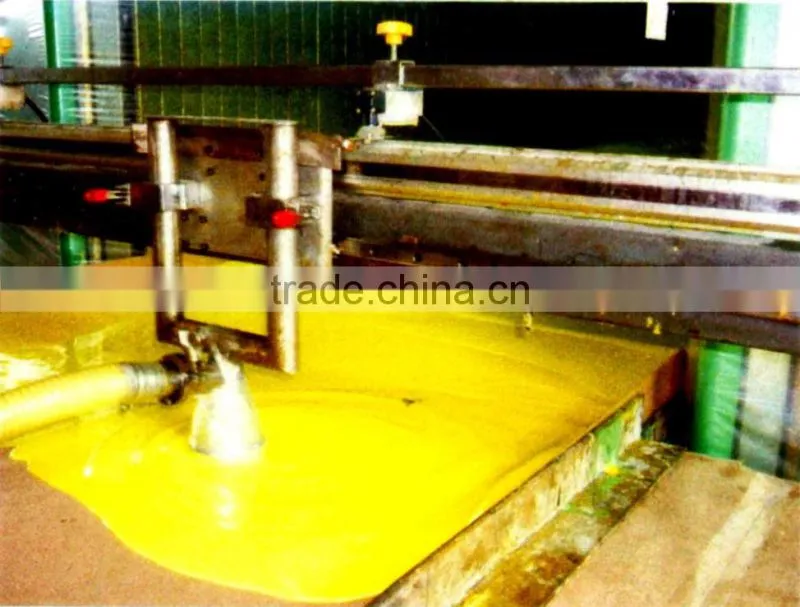

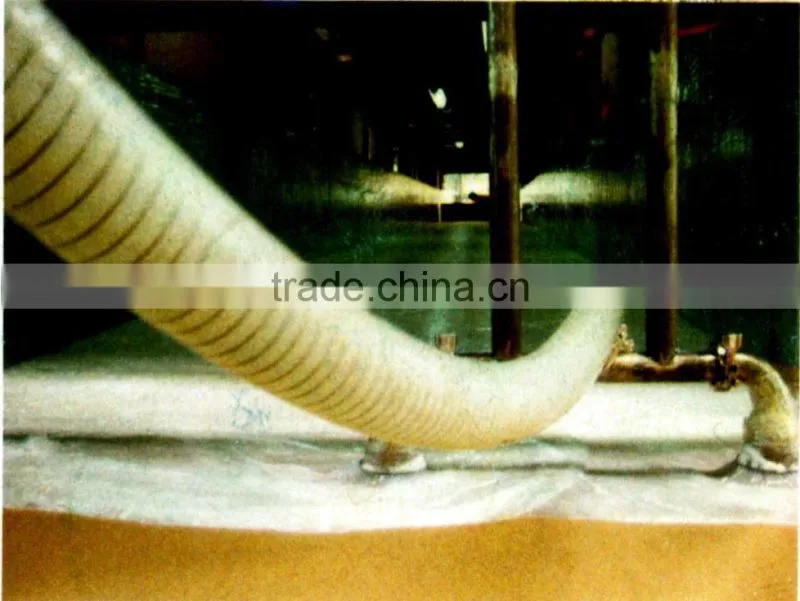

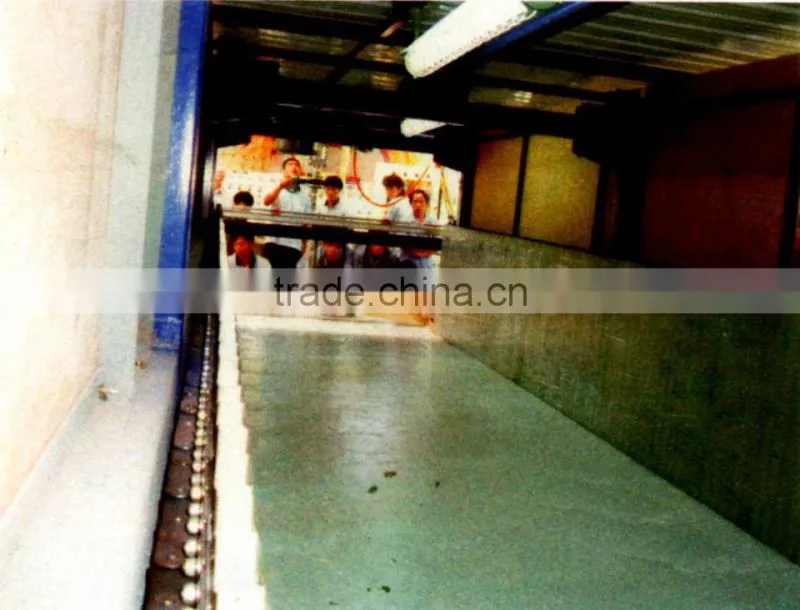

| Mixing Head | Foaming Oven | Spray Head | Double Spray Head (Foaming) |
| | | |

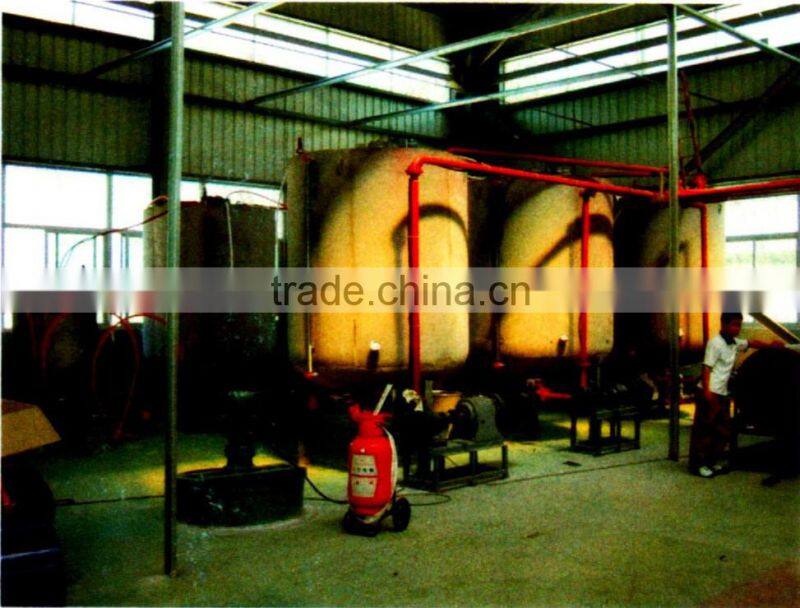

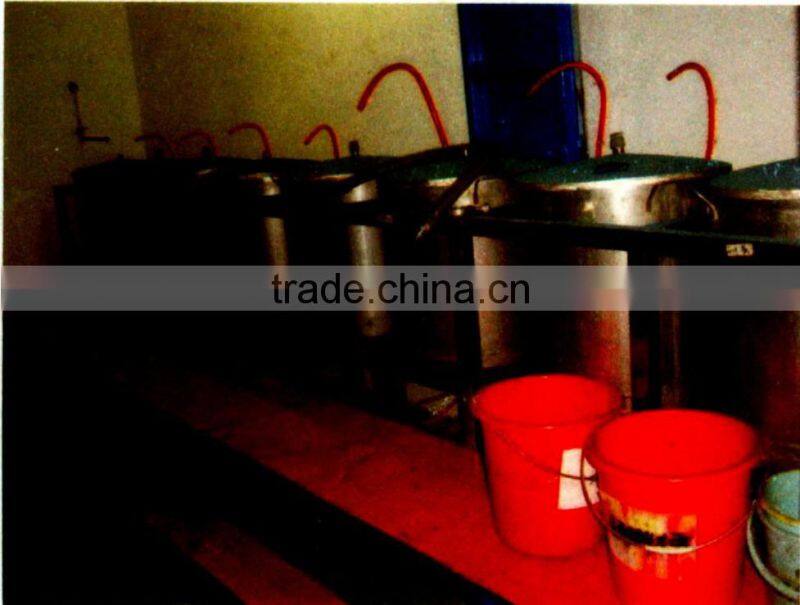

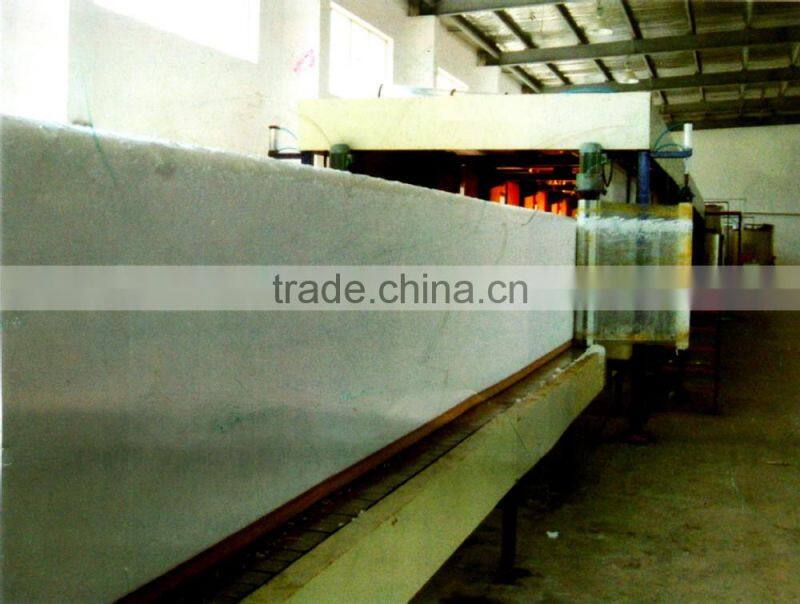

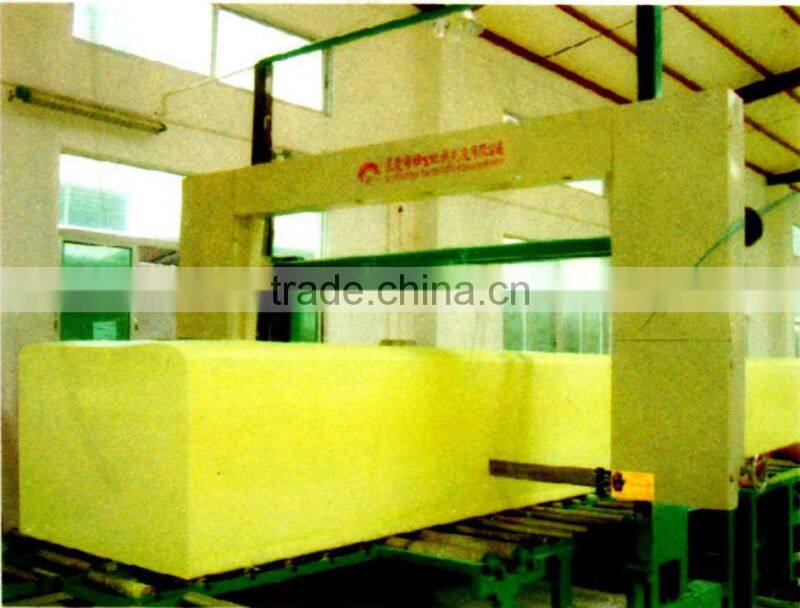

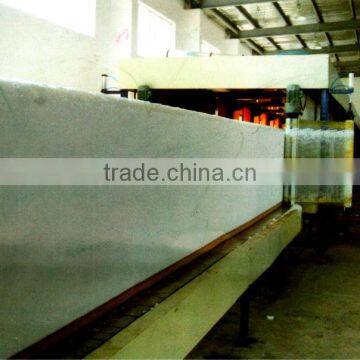

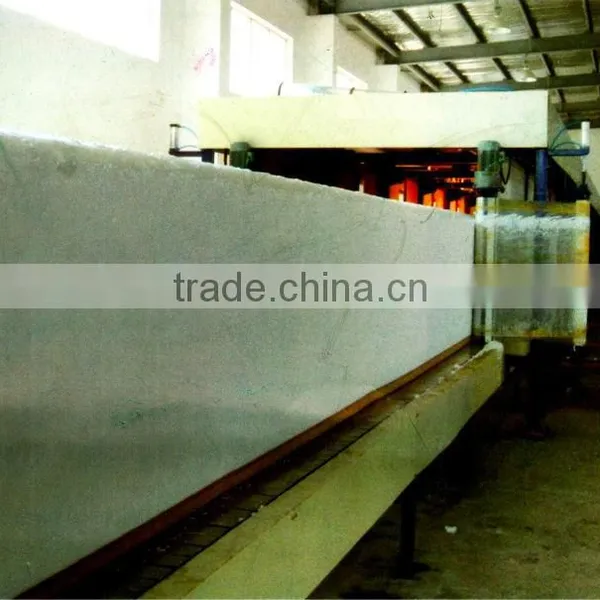

| Foaming | Block Cutter Machine | Big Material Tank | Small Material Tank |
Our Services
After Sales Service
1. Warranty
Our machine is one year period. If damaged caused by non-human factor, our company will be responsible for the free repair or replacement. While damaged caused by other factors or after warranty period, we will continue to provide service with reasonable price to the customer.
2. Installation and Training
We will send the User Manual for you to study how to install and operate the machines. If you have technicians who knows well about this kind of machine, you can install it by yourself. But if not and need our technicians to your factory for installing and trainning, we can help arrange. And all the expenses including VISA, air tickets, hotels, eating etc will be born by your side.
3. Maintenance
*Clean-keep all each parts clean and greasy dirt
*Neat-Tools and accessories placed neatly
*Lubricated-Remember lubricating on time
*Safety-Observe safety operation rules
Our machine is one year period. If damaged caused by non-human factor, our company will be responsible for the free repair or replacement. While damaged caused by other factors or after warranty period, we will continue to provide service with reasonable price to the customer.
2. Installation and Training
We will send the User Manual for you to study how to install and operate the machines. If you have technicians who knows well about this kind of machine, you can install it by yourself. But if not and need our technicians to your factory for installing and trainning, we can help arrange. And all the expenses including VISA, air tickets, hotels, eating etc will be born by your side.
3. Maintenance
*Clean-keep all each parts clean and greasy dirt
*Neat-Tools and accessories placed neatly
*Lubricated-Remember lubricating on time
*Safety-Observe safety operation rules
