Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > Computerized Panel Cutter Machine/Automatic Quilting Cutting Machine

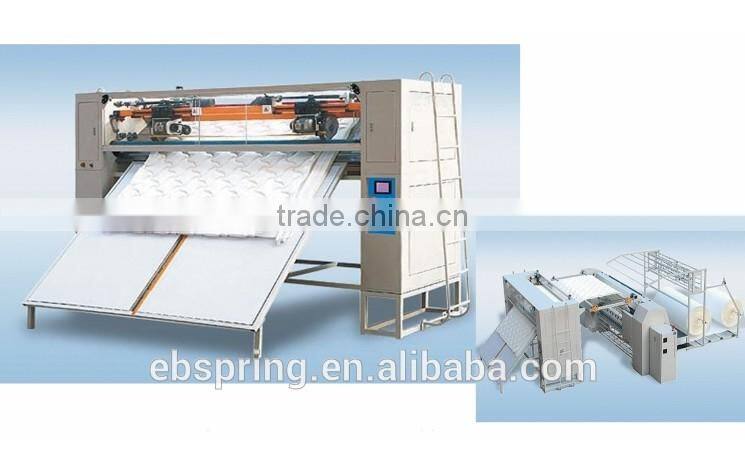

Computerized Panel Cutter Machine/Automatic Quilting Cutting Machine
US$ 1 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
EVERBRIGHT
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Computerized Multi-needle Shuttle Quilting MachineUS$ 1 - 35,000MOQ: 1 Set -
TB-1Mattress Tape Edge Sewing/ Banding MachineUS$ 2,000 - 4,000MOQ: 1 Set
-
V-PG-3A Queen /Single Size Pocket Coil Glueing MachineUS$ 1 - 1,000,000MOQ: 1 Set
-
CIFM Guangzhou Fair Good Quality Pocket Coil Glueing Machine V-PG-3AUS$ 1 - 1,000,000MOQ: 1 Set
-
V-PCS-G1 Excellent Performance Pocket Spring Coil MachineUS$ 1 - 10,000MOQ: 100000 Pieces
Condition
New
Place of Origin
Guangdong, China
Brand Name
EVERBRIGHT
Model Number
HY-QG-3
Voltage
380V/50HZ 220V/60HZ
Power(W)
380V/50HZ 220V/60HZ
Dimension(L*W*H)
3750x1330x2765mm
Weight
1500kg
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
EVERBRIGHT BEDDING MANUFACTORY LTD.
Product Description

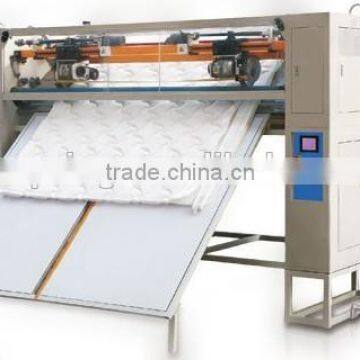

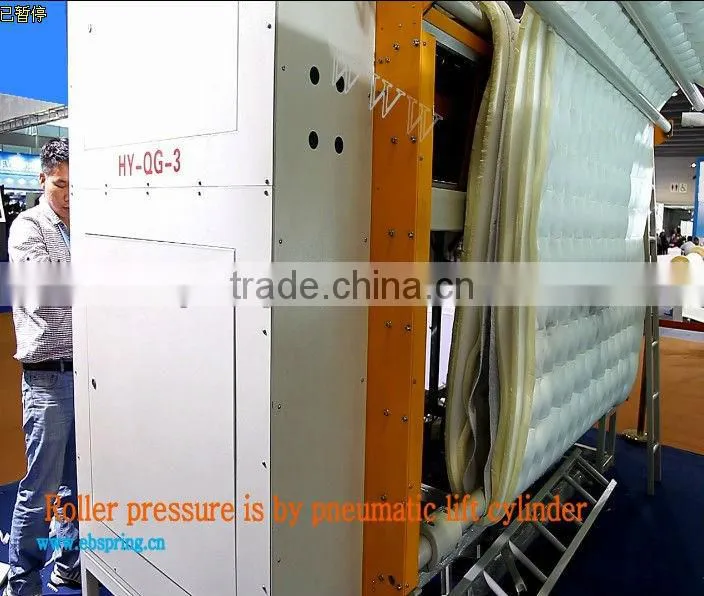

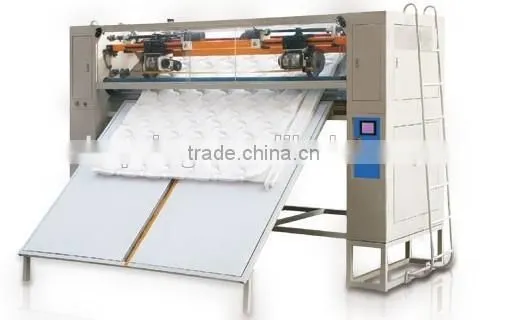

HY-QG-3 Panel Cutter Machine
Product Description:
Crosscut, slitter, margin trim and material rolling, which usually work with quilting machine.
- CE certified
- 5.6 ″Panasonic touch-screen MMI.

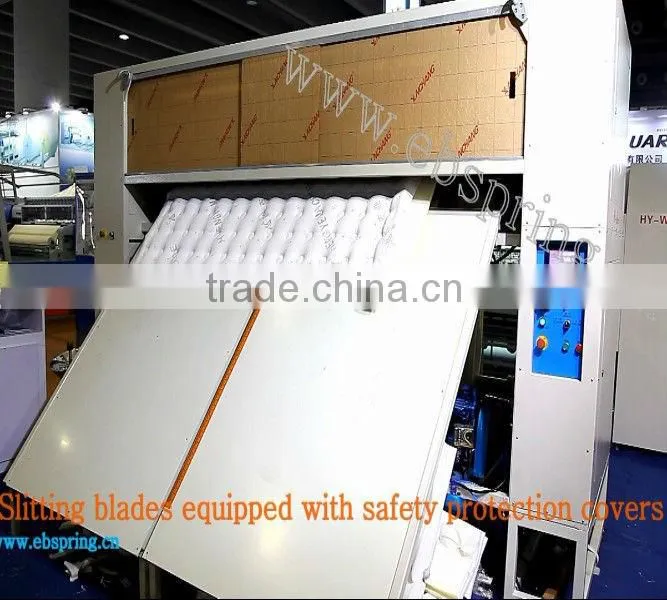

- Slitter blade equipped with safety protection cover.
- Electric controlling for side blade and pneumatic sharpening device.
- Ultra thin materials feeding detecting senor for trimming margin.
- Feed-in top roller adopt toothed synchronous material feeding technology.
- Box-shape machine body, precise cutting, high efficency.
Technical Specification:
| Trim Margin | The Max. X dimension: 2400mm/The Min. X dimension: 1050mm |
| Slitters | The Max. X dimension: 2450mm/The Min. X dimension: 40mm |
| Crosscut | The Max. Y dimension: 2500mm/The Min. Y dimension: 800mm |
| Thickness | 3~80mm |
| Speed | 7.5m/Min |
| Power | 2KW |
| Power Supply | 380V/50HZ, 220V/60HZ |
| Operating Air Pressure | 0.4~0.8Mpa |
| Dimension(LxWxH) | 3750x1330x2365mm |
| Machine Weight | 1500KG |
Video for HY-QG-3 Panel Cutter Machine:
For more information, please contact us directly. Thank you for your contacting in advance.
